JEOL SM-40080 Scanning Rotating PCB Card
Product Manual：
JEOL SM-40080 Scanning Rotating PCB Card
1. Compatible with JEOL electron microscope sample stage control system, JEOL SM-40080 controls sample scanning and rotation action signals
2. Precision circuit etching process ensures stable and low loss transmission of motion control signals
3. High temperature resistant substrate, supporting long-term uninterrupted continuous operation of equipment
4. Complete solder mask protection layer to prevent copper foil oxidation, circuit leakage and short circuit
5. Standard pad specifications, components are firmly soldered without easy detachment
6. JEOL SM-40080 wiring electromagnetic optimization reduces positioning deviation caused by signal crosstalk
7. The flatness of the board surface is good, and it is not easy to warp or deform during installation and operation
8. Standard positioning holes, easy disassembly, replacement, and maintenance operation
9. Stable insulation performance, able to withstand internal voltage fluctuations of equipment
10. Specification for metalized via process, ensuring long-lasting and reliable interlayer circuit conductivity
11. Clear silk screen channel markings for easy maintenance of motion control circuits
12. Wide temperature adaptability to cope with temperature fluctuations inside the mirror body
13. Original factory impedance parameter design to ensure scanning rotation positioning accuracy
14. Excellent anti vibration performance, control signal does not drift during operation
15. Native matching of the entire machine driver program, no additional debugging parameters required
The JEOL SM-40080 scanning rotating PCB card is used as the motion control substrate for the sample stage and is compatible with the JEOL series scanning electron microscope.

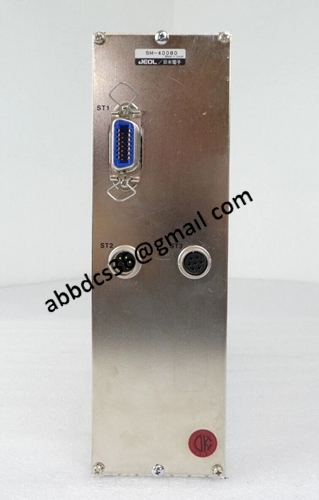

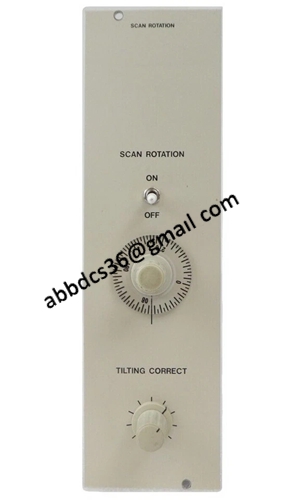

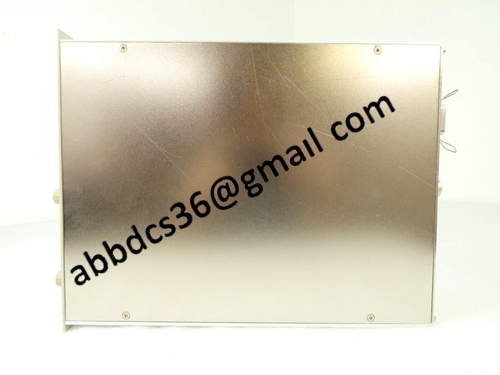

Product detailed pictures：
SM-40080
product video
