JEOL XYR000301-01 Stepping Module
Product Manual：
JEOL XYR000301-01 Stepping Module
1. JEOL XYR000301-01 Control Instrument Stepper Motor Precise Positioning Control
2. XYR000301-01 outputs stable driving signals with high positioning accuracy
3. Equipped with circuit isolation to avoid electromagnetic interference inside the instrument
4. Built in overload protection, automatic current limiting protection when the motor is stuck
5. Smooth speed regulation, smooth start stop operation without obvious shaking
6. Original installation specifications, easy disassembly and replacement of card slots inside the machine
7. Solid anti-seismic structure, equipment operation vibration is not easy to malfunction
8. Adapt to the enclosed space inside the instrument, moisture-proof, dustproof and durable
9. Fast reception of instructions from the upper computer and short response delay
10. Each drive circuit is independent, and single channel abnormalities do not affect each other
11. Moderate operating power consumption, controllable temperature rise during long-term operation
12. The circuit has precise workmanship and stable transmission of driving signals
13. Comes with a simple fault self check, quickly troubleshooting error problems
14. Surface protective coating, delaying the oxidation aging of circuit boards
15. Factory debugging and testing of the entire machine, stable operation can be achieved upon installation
In summary, JEOL XYR000301-01 has precise and durable positioning, and is a dedicated original stepper drive module for JEOL precision equipment.

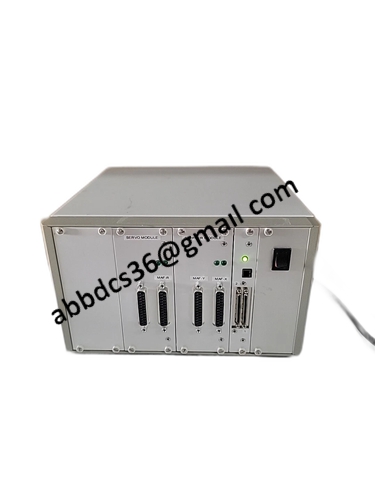

Product detailed pictures：
XYR000301-01
product video
