MOTOROLA MVME147SRF Single Board Computer

Product Manual：

MVME147SRF Motorola VME bus industrial control single board, main control accessories for old equipment.
1. Model MVME147SRF, 6U standard VME board specification.
2. Equipped with 68030 processor and floating-point arithmetic coprocessor.
3. Onboard high-capacity DRAM and power down storage NVRAM storage.
4. Integrate 100Mbps Ethernet, SCSI storage interface, and dual RS232 serial ports.
5. Equipped with VME master-slave bus function, it can control various peripherals of the rack.
6. Comes with hardware watchdog and backup battery real-time clock circuit.
7. Wide temperature component selection, stable operation in harsh environments of -40~85 ℃.
8. Powered by the VME backplane, no additional external power supply is required.

9. Compatible with old embedded operating systems such as VxWorks and OS9.
10. Single slot rack plug-in installation, same series models can be directly replaced.
11. Built in parallel printing port, convenient for on-site debugging and connecting devices.
12. Excellent anti vibration design, suitable for locomotives and heavy industry industrial control equipment.
13. Fully integrated peripheral circuits, streamline the entire control system structure.
14. The original factory has long ceased production and relies on dismantled spare parts to maintain equipment maintenance.
15. Mostly used for old CNC, rail transit, and large unit main control units.
Overall, MVME147SRF has high integration and strong adaptability to working conditions, and is the core control board of the old-fashioned VME control system.

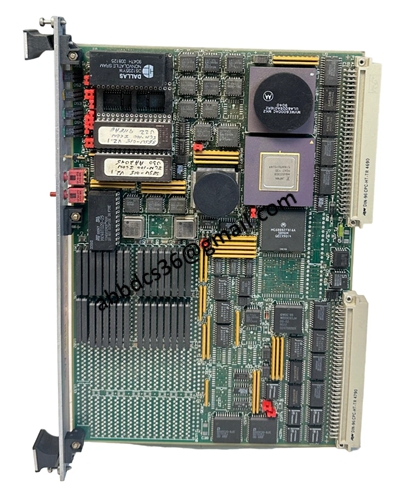

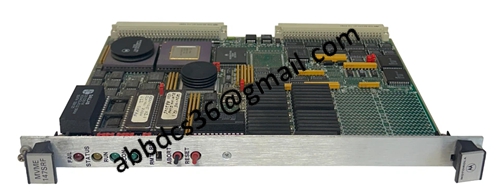

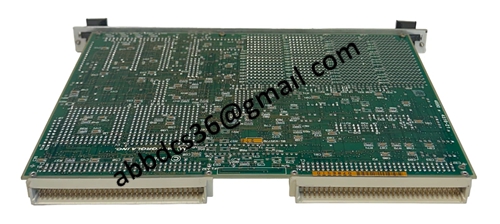

Product detailed pictures：

MVME147SRF

product video
