MVI56-PDPMV1 communication module
Product Manual：
MVI56-PDPMV1 is a Communication Adapter Module used in conjunction with Allen Bradley PLC systems, particularly with ControlLogix/PLC-5 or SLC series. It is used to achieve data communication between controllers and field devices, process equipment, or other control networks, and is typically used for distributed communication in modular systems.
Application field
Data exchange between equipment in industrial automation systems
Networking and Collaborative Control between Multi Controller Systems
Data communication with DCS, SCADA, HMI systems
Fieldbus network connections (such as DeviceNet, ControlNet, EtherNet/IP, etc.)
Connecting process equipment, drivers, sensors, and actuators
Main functions and features
Protocol conversion and communication interface
Provide data interfaces between controllers and on-site networks or devices to achieve protocol communication and data sharing.
Industrial grade reliability
Designed for industrial environments, capable of withstanding vibration, electromagnetic interference, and temperature changes.
Bidirectional data transmission
Support the controller to send commands and receive feedback from on-site devices, achieving closed-loop control and monitoring.
Status indication and diagnostic feedback
Provide module operation status indicators to assist in maintenance and troubleshooting.

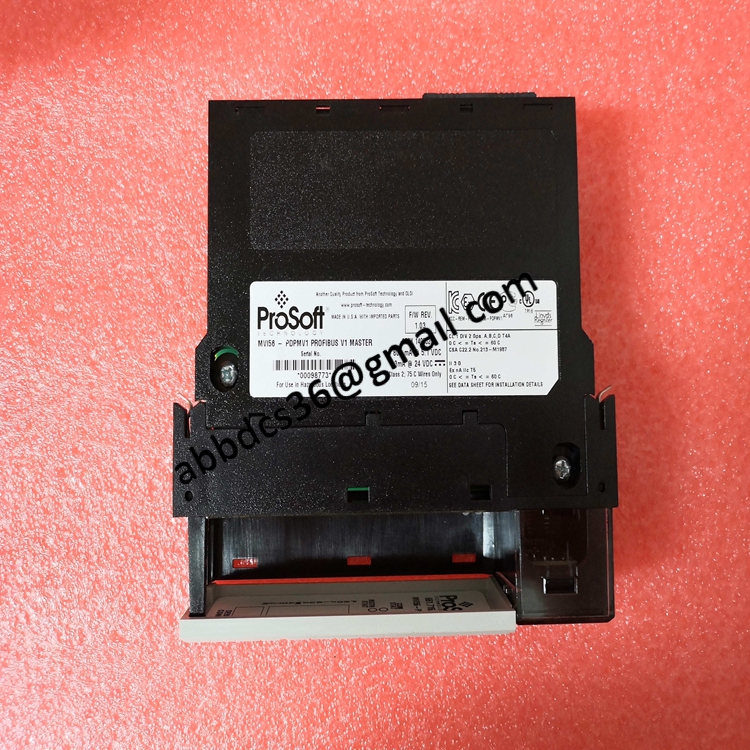

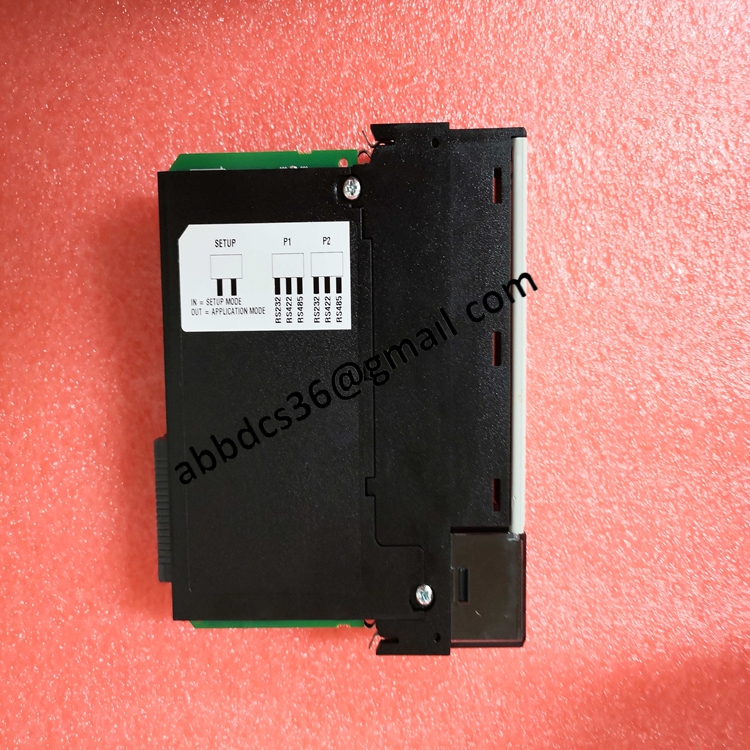

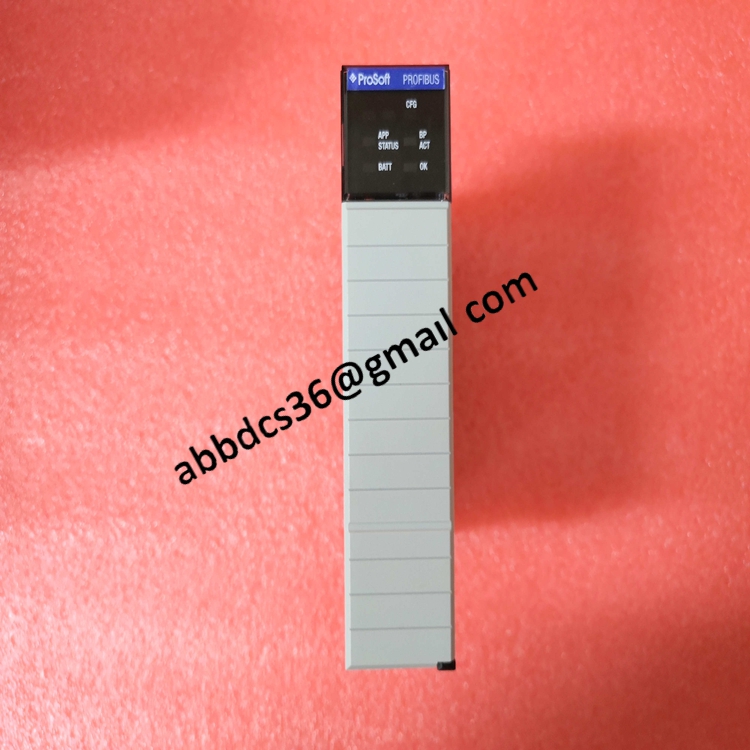

MVI56-PDPMV1 Product detailed pictures：
MVI56-PDPMV1 product video
