Nachi Daihen UM356B Printed Circuit Board
Product Manual：
Nachi Daihen UM356B printed circuit board is matched with Nachi Daheng robot control cabinet, responsible for IO signal transmission.
1. Model Nachi Daihen UM356B, dedicated industrial control circuit board.
2. Integrate multiple input and output points to send and receive on-site switch signals.
3. Optoelectronic isolation circuit to block interference and protect the main control components.
4.24V DC power supply, matched with the power supply of the robot system.
5. The onboard voltage regulator circuit operates smoothly in a voltage fluctuation environment.
6. Gold plated connectors, durable for insertion and removal, with stable contact performance.
7. Three proof coating treatment, moisture-proof and dustproof, suitable for workshop environment.
8. Original slot specifications, directly replace and install in place inside the cabinet.
9. Built in overcurrent protection, short circuit is not easy to damage the circuit board.
10. Adapt to the main control system of multiple welding robots from Nazhi.
11. Reasonable wiring zoning to reduce crosstalk between lines.
12. Industrial board construction, earthquake resistant and dynamic resistant to equipment start stop impact.
13. Equipped with communication lines to connect the main control and peripheral components.
14. The fault location is easy to troubleshoot and the later maintenance is simple.
15. Long term continuous operation results in a low failure rate of the equipment.
Overall, the Nachi Daihen UM356B printed circuit board has stable performance and is an indispensable signal control board for the Nazhi Daheng robot.

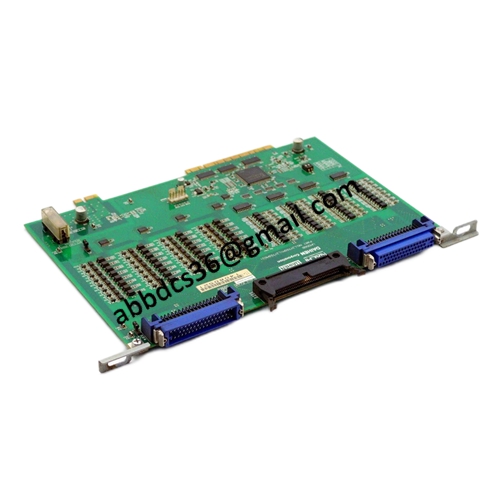

Product detailed pictures：
UM356B
