NIKON 4S065-501 Controller Module

Product Manual：

NIKON 4S065-501 Controller Module
Introduction: NIKON 4S065-501 Nikon lithography machine dedicated control board, controls equipment movement and process signals.
Fast signal processing speed and timely instruction response
Line with shielding to resist electromagnetic interference in the workshop
Integrated multiple overvoltage and overcurrent protection circuits
Compact board structure, space saving for cabinet installation
Adequate thermal conductivity through holes, good heat dissipation under high loads
Gold plated fingers, difficult to insert and remove, poor contact
Equipped with built-in fault self check, quickly locate anomalies

Independent channel design, single channel failure does not affect the entire machine
Temperature resistant substrate, suitable for high temperature environment inside the machine
Standard bus interface, connected to the main control system of the whole machine
24-hour uninterrupted mass production and stable operation
Reserved debugging port, simple parameter calibration operation
Plug in installation, easy to replace and maintain
Dustproof and corrosion-resistant, suitable for dust-free clean workshops
Compatible with Nikon series lithography exposure equipment
Conclusion: NIKON 4S065-501 has stable operation, strong anti-interference ability, and is a core control spare part for lithography machines.

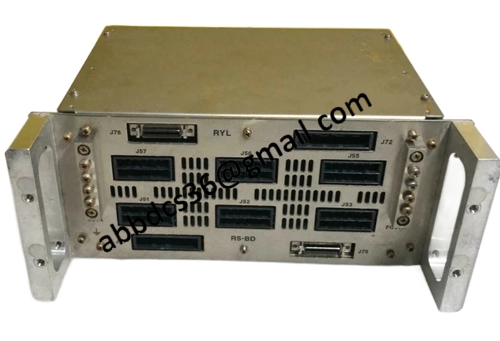

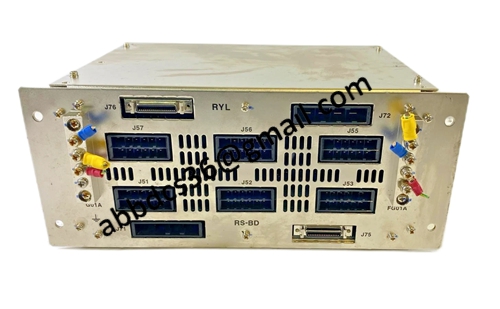

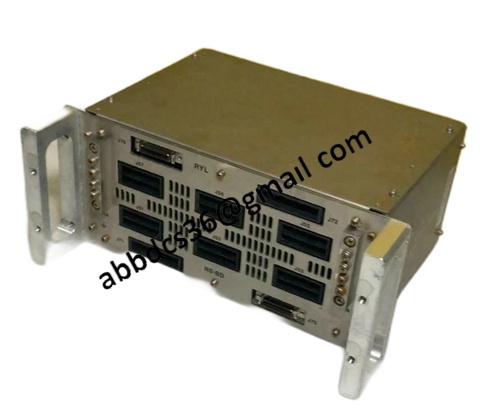

Product detailed pictures：

4S065-501
