Omron C200PC-ISA03-1 Printed Circuit Board
Product Manual：
Omron C200PC-ISA03-1 Printed Circuit Board
Introduction: Omron ISA bus industrial control PLC main control board, inserted into an industrial computer to achieve equipment logic and remote IO control.
1. Omron C200PC-ISA03-1 standard ISA slot for direct installation and use on industrial computers
2. Built in PLC computing core, capable of independently writing device control programs
3. Support remote bus communication and external multi-channel distributed IO modules
4. Comes with battery backup, power off to save programs and running data
5. Multi layer shielded circuit to resist electromagnetic interference in the workshop
6. Channel electrical isolation, separating strong and weak electricity for safer operation
7. Hardware fault self check, quickly locate communication and line abnormalities
8. Overvoltage and overcurrent protection, voltage fluctuations are not easy to damage the board
9. Reinforced surface mount components to withstand long-term vibration of equipment
10. The working temperature range is 0-55 ℃, suitable for the conventional environment of the control cabinet
11. Large capacity program storage to meet the logical operations of complex devices
12. Multi channel signal interface, connected to sensors and actuators
13. Low data transmission delay and timely response of device actions
14. Standard terminal layout, easy on-site wiring and maintenance
15. Compatible with Omron C200 series complete system, easy to debug
Conclusion: Omron C200PC-ISA03-1 integrates PLC control function, stable and reliable, and is the core control board of old-fashioned industrial control equipment.

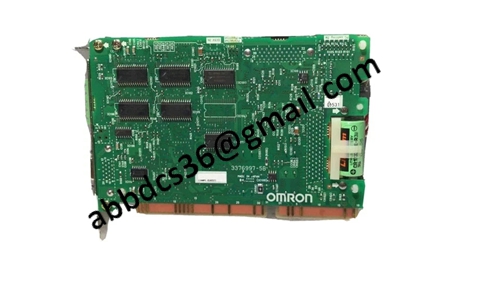

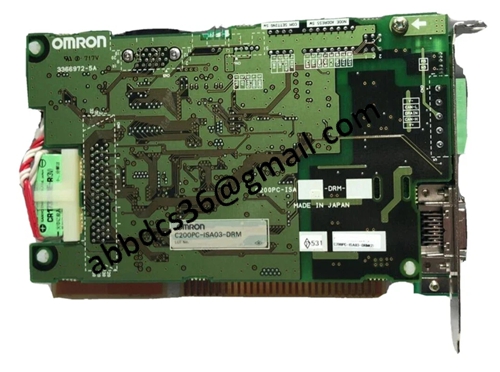

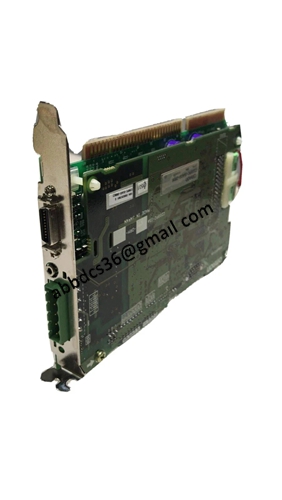

Product detailed pictures：
C200PC-ISA03-1
