OPAL EA30613420 Controller Module

Product Manual：

OPAL EA30613420 Controller Module
Introduction: OPAL EA30613420 is a dedicated main control module for semiconductor thin film equipment, which controls the entire process parameters of chamber gas path and pressure.
Compatible with OPAL series ALD deposition semiconductor equipment
High speed signal processing, rapid response to process parameter adjustment
Multiple independent IO channels, connected to sensors and solenoid valves
Analog digital circuit partition wiring to reduce signal interference
Built in multiple circuit protection against overvoltage, short circuit, and static electricity
Real time collection of feedback signals, closed-loop stable control process
Onboard fault indicator light for quick troubleshooting of circuit abnormalities
Standard card slot structure, easy to disassemble, replace and maintain

Sinking gold pad process, long-term stable contact in clean workshop
Three proof coating protection, moisture-proof and dust-proof, suitable for production line environment
Precise impedance wiring, distortion free transmission of weak sensing signals
Support device bus communication and interface with the upper control of the whole machine
Local storage of multiple sets of process formulas, one click program switching
Reinforce PCB wiring to withstand continuous vibration conditions of equipment
Support 24-hour uninterrupted wafer production and stable operation
Conclusion: OPAL EA30613420 has precise control and strong anti-interference ability, making it the core control component of semiconductor coating equipment.

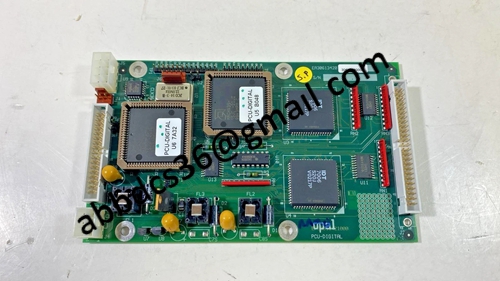

Product detailed pictures：

EA30613420
