PI E711B0029 Input/Output Module

Product Manual：

PI E711B0029 input/output module is compatible with PI precision piezoelectric motion controller.
1. Multiple digital IO channels, synchronously collecting feedback and issuing control instructions
2. Electrical isolation circuit to isolate electromagnetic clutter interference on site
3. Gold plated terminal contacts, stable and non oxidizing contact after long-term insertion and extraction
4. Single channel independent protection, single channel failure does not affect overall operation
5. Lock the wiring structure, making it difficult for the equipment to loosen or break due to vibration
6. Multi layer precision PCB with low high-frequency signal transmission loss
7. Reinforced patch technology, capable of withstanding long-term vibration and impact of equipment

8. Industrial temperature resistant substrate, suitable for high and low temperature cycling conditions
9. Built in heat dissipation through holes, stable temperature rise during full load operation
10. Moisture resistant solder mask coating, delaying corrosion and aging of the circuit
11. Equipped with signal self-test, quickly troubleshoot circuit abnormalities
12. Standard card slot size, can be directly replaced without changing the wiring
13. Native matching with E711 series control system, strong compatibility
14. Anti static protection design to protect onboard precision chips
15. Modular split structure, saving time and effort in maintenance and replacement
PI E711B0029 input/output module accurately transmits motion control signals to ensure stable operation of precision platforms.

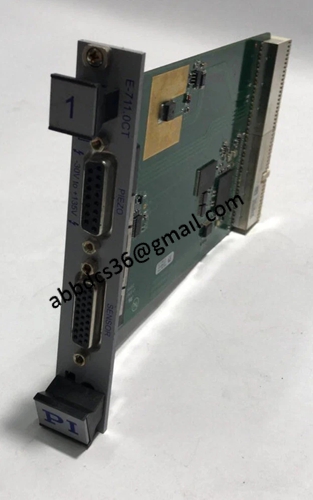

Product detailed pictures：

E711B0029
