Servotronix CDHD2-0062AEC2 Digital Servo Drive
Product Manual：
Servotronix CDHD2-0062AEC2 Digital Servo Drive
Introduction: Servotronix CDHD2-0062AEC2 is a high-performance EtherCAT bus digital servo drive that is compatible with high-precision automated multi axis motion control equipment.
Equipped with HD high-performance control algorithm, with small positioning error and fast setting speed
3-5 kHz high bandwidth current loop, with sensitive and rapid dynamic response
Built in vibration suppression algorithm, eliminates mechanical resonance, runs without shaking
Supports EtherCAT high-speed bus, low delay for multi axis synchronous control
Equipped with a second encoder interface to achieve dual closed-loop precise control
Equipped with gantry synchronization mode, suitable for dual axis gantry machining equipment
Compatible with various servo motors including linear, rotary, and voice coil
Integrated STO safety torque cut-off function ensures safer equipment operation
Support automatic load identification and one click self-tuning, easy to debug
Comes with an operation display panel, allowing for local viewing of faults and parameters
Equipped with ServoStudio software, visual debugging, monitoring and operation
Multiple hardware protections, including overcurrent, overvoltage, overheating, and short circuit protection
Compact high-power density body, saving cabinet installation space
Capable of position comparison output, suitable for laser synchronous processing scenarios
Through CE and UL safety certifications, it can operate continuously for 24 hours in mass production
Conclusion: Servotronix CDHD2-0062AEC2 has high control accuracy and stable bus communication, and is the core driving unit of precision automation equipment.

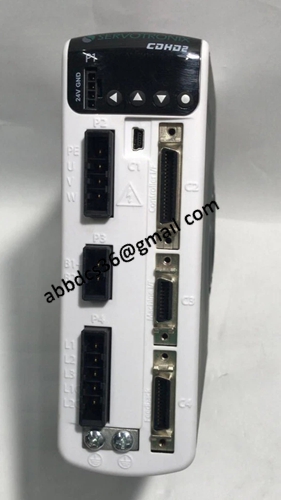

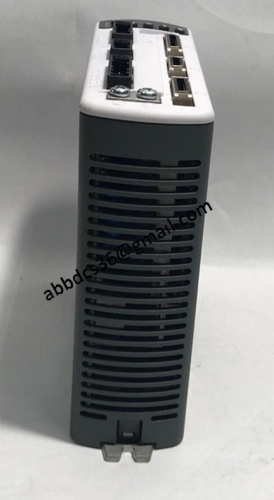

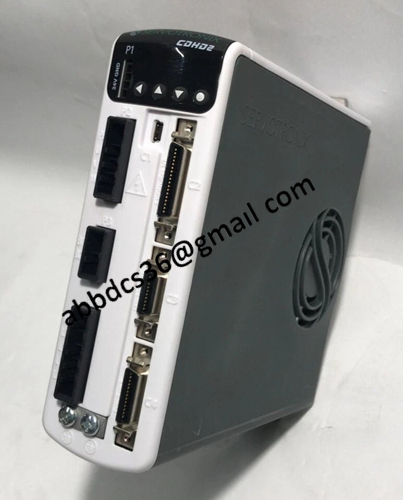

Product detailed pictures：
CDHD2-0062AEC2
