SIEMENS 10513413 regulating board

Product Manual：

SIEMENS 10513413 regulating board
SIEMENS 10513413 is a signal conditioning board for industrial semiconductor equipment, used for signal conversion and calibration control of operating conditions.
Can convert various analog and digital sensing signals
Signal filtering circuit, filtering out on-site clutter interference
High precision adjustment circuit with small parameter calibration error
Strong and weak signal zoning routing, without affecting each other
High temperature resistant board, adaptable to temperature fluctuations in cabinets
Reinforced solder joints, less prone to detachment and breakage in vibration environments
Equipped with short-circuit overload protection to prevent component burnout
Reserve detection points for quick maintenance and troubleshooting

Compact board design, cabinet card slot for easy installation
Support real-time communication and data transmission with the main control board
Dust free production process, suitable for clean production workshops
Partition layout of components, replace damaged parts separately
Metallized through holes ensure stable interlayer signal transmission
Standard card specifications, no need to modify the wiring for disassembly and assembly
Unify the original factory size and replace the same type of adjustment board directly
In summary, the SIEMENS 10513413 control board has precise signal processing and strong anti-interference ability, making it an important electronic control spare part for semiconductor automation equipment.

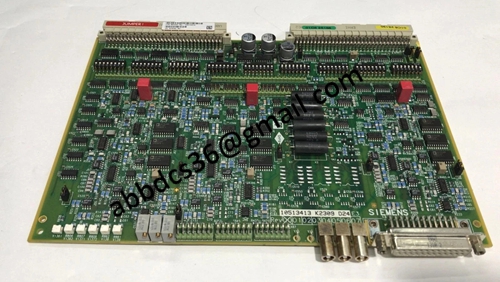

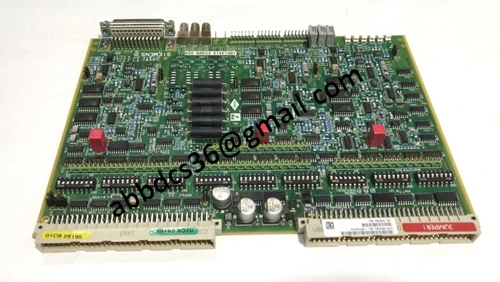

Product detailed pictures：

10513413
