Silicon Graphics 030-0804-101 processor board
Product Manual：
Silicon Graphics 030-0804-101 processor board
1. Compatible with SGI Onyx graphics workstation, IP25 series original main control CPU board
2. Equipped with MIPS architecture processor, multi-core parallel computing, powerful graphics computing power
3. Onboard high-capacity secondary cache reduces data read latency and runs more smoothly
4. Integrated dedicated memory slot, supports ECC error correction memory, and prevents errors during data operation
5. Exclusive system bus interface, high-speed docking of chassis IO motherboard and graphics module
6. The board comes with a built-in status indicator light, allowing for intuitive viewing of operation and fault status
7. Three proof coating treatment for the entire board, moisture-proof and dustproof, suitable for precision machine room working conditions
8. Original multi-layer PCB circuit, precise wiring, low signal transmission loss
9. Industrial grade original components, stable and continuous operation in a wide temperature environment for a long time
10. Standard rack card specifications, plug-in installation, easy replacement of spare parts
11. Built in hardware self-test circuit, automatically inspects abnormal points of the circuit when powered on
12. Compatible with multiple sub model boards of the same series, flexible equipment expansion and selection
13. Low power supply circuit design, controllable heat generation during full load operation
14. Supporting IRIX system underlying driver, software and hardware adaptation without compatibility failure
15. Mostly used for simulation modeling, 3D drawing, and core components of industrial control hosts
In summary, the Silicon Graphics 030-0804-101 processor board is the core control component of SGI’s high-end graphics computing devices.

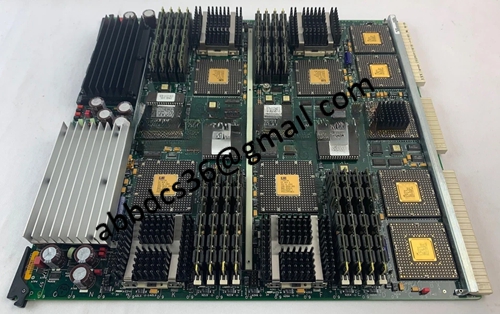

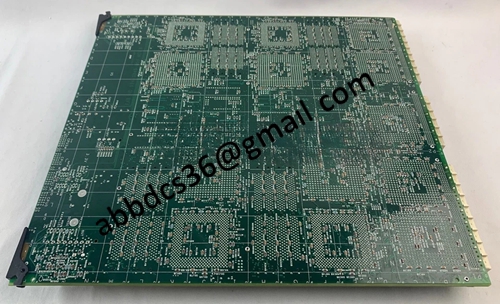

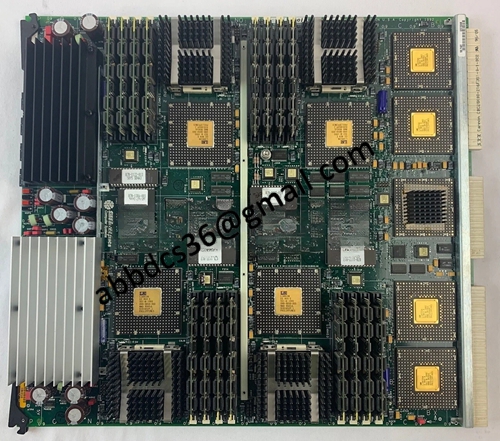

Product detailed pictures：
Silicon Graphics 030-0804-101
