SYN6202-0203 3BHE05622R0203 Controller Module
Product Manual：
SYN6202-0203 3BHE05622R0203 Controller Module
SYN6202-0203 3BHE05622R0203 is an ABB SYNC HROTACT6 series dual channel synchronous control module used for precise synchronization control of generator sets connected to the grid, and safe and stable adaptation to power industrial control systems.
1. Original factory synchronous dedicated module, adapted to the grid connection conditions of power plant generator sets
2. Dual channel independent detection, synchronous monitoring of voltage, frequency, and phase parameters
3. High precision phase capture, low grid connected surge current, protecting unit equipment
4. Supports 50/60Hz dual band, compatible with domestic and international power grid standards
5. SIL2 safety level design significantly reduces the risk of accidental closing
6. Multiple electrical protections, integrated with overvoltage, overcurrent, and short-circuit protection
7. Optoelectronic isolation signal channel, isolating electromagnetic interference from the power grid
8. Rail type compact structure, space saving installation of control cabinet
9. Standard communication interface, supporting Modbus docking with upper monitoring system
10. Real time fault self check, rapid alarm of abnormal status indicator light
11. Wide temperature working range, suitable for high and low temperature environments in computer rooms
12. Industrial reinforced circuit board, earthquake resistant, dust resistant, long-term stable operation
13. Parameters can be adjusted locally through the panel, and on-site debugging does not require a computer
14. Redundant expansion compatibility, can be combined with multiple modules to build redundant systems
15. Standardized terminal wiring, easy disassembly, maintenance, and replacement
Overall, the SYN6202-0203 3BHE05622R0203 controller module has high synchronization accuracy and complete safety protection, making it a core component for grid connected control of power plants and substations.

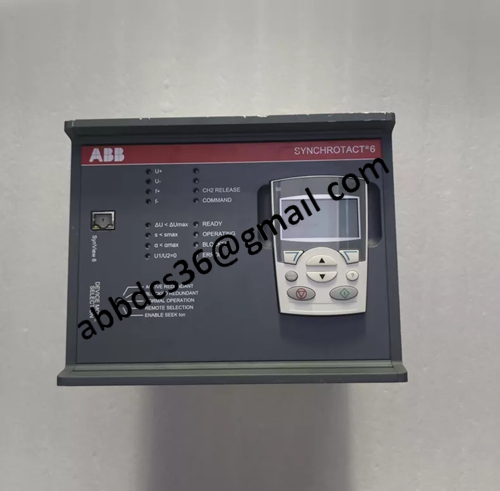

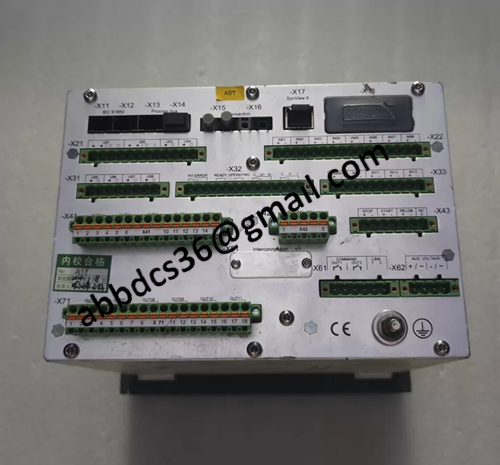

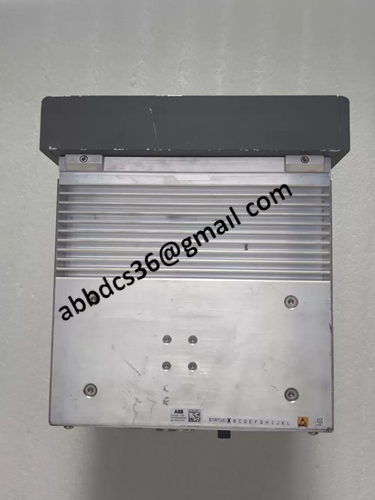

Product detailed pictures：
SYN6202-0203 3BHE056202R0203
