TC-PPD011 power module

Product Manual：

TC-PPD011 power/battery expansion module
Honeywell ControlEdge/Expo system specific, providing backup power for controllers
24VDC power supply, suitable for industrial control standard power environment
Lithium ion battery, capacity 11Ah, supports continuous operation after system power failure
No memory effect, can be charged and discharged at any time, long battery life
Support hot swapping, online replacement does not affect system operation
Built in multiple protections for overcharge, overdischarge, and short circuit, ensuring safety and reliability

Low power design, low static current, energy-saving and stable
Working temperature -20 ℃~+60 ℃, suitable for industrial site environment
Compact size, DIN rail installation, saving cabinet space
Compatible with mainstream DCS/PLC systems from Honeywell, with high integration
Real time battery status monitoring, supporting fault alarm and diagnosis
Provide at least 30 minutes of backup power supply to ensure critical data and safe shutdown
Compliant with CE and UL industrial certifications, meeting safety standards
Maintenance free design, stable and reliable long-term operation
Suitable for key process control scenarios in petrochemical, power, chemical and other industries
TC-PPD011 has become the core power module for industrial control system power-off protection due to its high reliability backup power supply, strong compatibility, and easy maintenance.

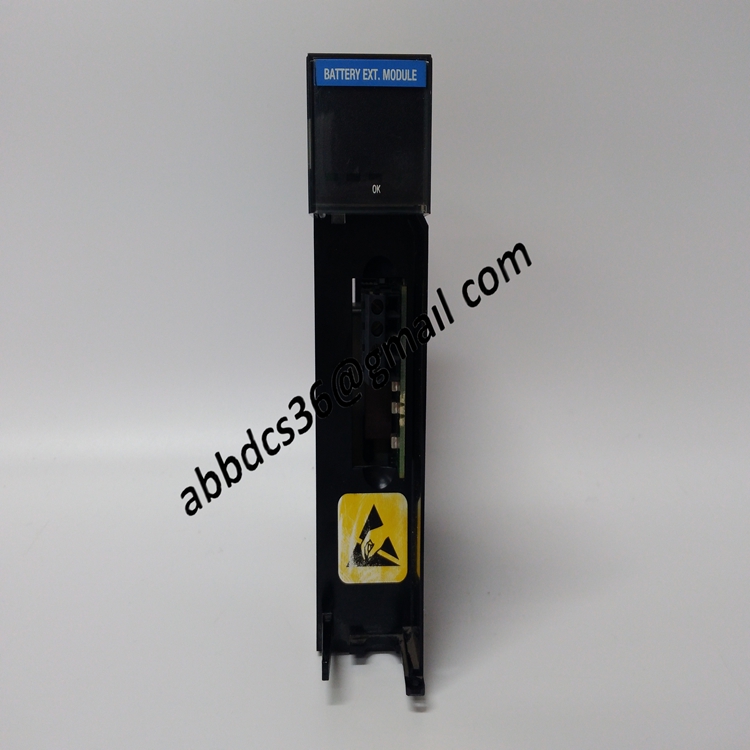

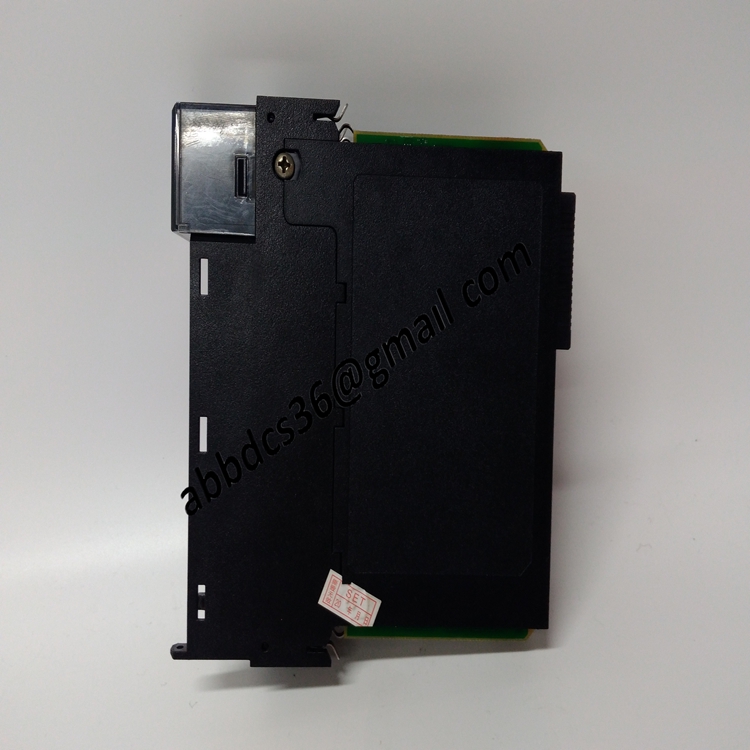

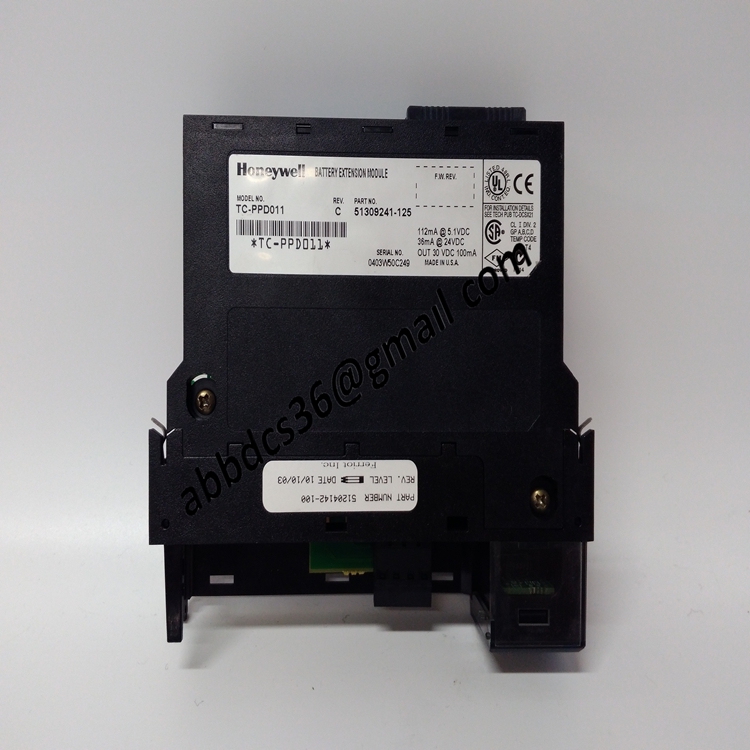

Product detailed pictures：

TC-PPD011
