TEL 3308-000065-13 Printed Circuit Board
Product Manual：
TEL 3308-000065-13 is an original printed circuit board for semiconductor equipment, responsible for machine signal acquisition and power monitoring.
1. TEL 3308-000065-13 original factory matching TEL wafer equipment, high adaptability
2. Multi layer isolation wiring, strong and weak electrical zoning, reducing signal crosstalk
3. Gold plated terminal interface, stable long-term plug-in contact without open circuit
4. Precise impedance routing, distortion free transmission of weak sensing signals
5. Onboard filtering components to suppress electromagnetic interference in clean rooms
6. Integrated over-current and over-voltage protection circuit to prevent component burnout
7. High TG high-temperature resistant substrate, suitable for machine high-temperature working conditions
8. High density patch layout, integrated with multiple detection channels
9. Reserved heat dissipation through holes, lower temperature rise during high load operation
10. Distinguish between signal ground and power ground, accurately detect data
11. Moisture resistant and corrosion-resistant coating, resistant to trace process gases
12. Standard board size, card slot direct installation and easy replacement
13. Equipped with self checking circuit, quickly locate circuit faults
14. Industrial reinforced panels with strong seismic and impact resistance durability
15. Original components with low failure rate during long-term continuous operation
Conclusion: TEL 3308-0000065-13 printed circuit board has stable signal and complete protection, and is a core original circuit accessory for semiconductor process equipment.

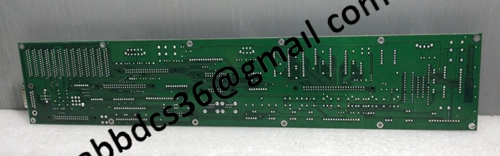

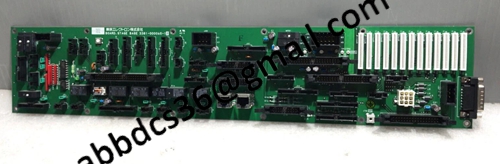

Product detailed pictures：
3308-000065-13
product video
