TEL 3D80-001488-V2 power module
Product Manual：
TEL 3D80-001488-V2 power module
Introduction: TEL 3D80-001488-V2 original industrial power module provides pure and stable DC power supply for various control boards and driver components of semiconductor etching and coating equipment.
Small output voltage ripple, pure power supply, and no interference with precision sensing signals
Multi channel independent voltage regulation output, capable of synchronously supplying power to multiple sets of loads simultaneously
Integrated four layer safety protection for overvoltage, overcurrent, overheating, and short circuit
V2 version optimizes circuit design to reduce the probability of long-term operational failures
Wide AC input adaptation to cope with voltage fluctuations in the factory power grid
Built in high-efficiency heat dissipation duct, with controllable temperature rise during long-term operation at full load
Standard modular slot structure, easy disassembly, maintenance, and replacement
Metal shielding shell, suppresses internal electromagnetic diffusion and interference with the whole machine
Reinforce high current wiring terminals to prevent overheating and loosening when powered on
Equipped with power operation and fault alarm indicator lights for quick identification of abnormalities
Industrial grade high-temperature resistant components, suitable for 24/7 operation in clean workshops
Compact and orderly body, saving installation space inside the cabinet
Strong load capacity, no significant voltage drop during light and heavy load switching
Factory full load aging test, with higher output consistency and reliability
Perfectly matched with TEL series process machines, can work together with drivers and communication boards
Conclusion: The TEL 3D80-001488-V2 power module continuously outputs stable electrical energy, ensuring the normal operation of various components in semiconductor equipment and reducing process shutdown failures.

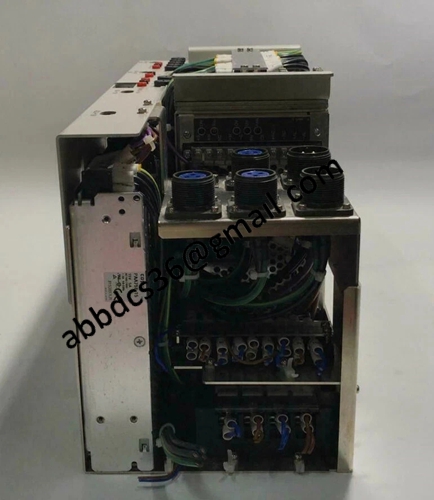

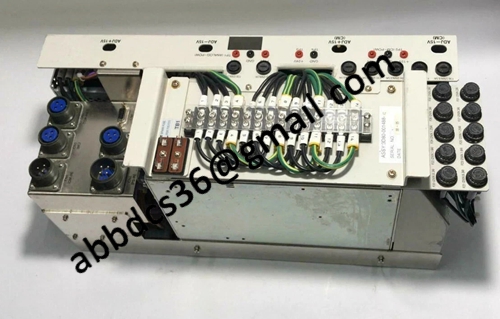

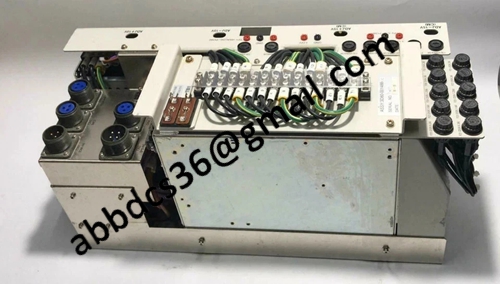

Product detailed pictures：
3D80-001488-V2
