TEL 3D81-000044-V5 Controller Module
Product Manual：
TEL 3D81-000044-V5 Controller Module Product Features
Introduction: TEL 3D81-000044-V5 is a dedicated main control module for semiconductor equipment, suitable for TEL etching and thin film deposition equipment, stable and reliable.
Industrial grade wide temperature operation, suitable for high and low temperature conditions in semiconductor workshops
Equipped with a dedicated computing chip, real-time logic control with fast response speed
Integrated multiple digital and analog I/O channels, comprehensive signal acquisition
Multiple communication interfaces including Ethernet and serial ports, making it convenient to connect with the entire system
Built in four fold protection for overvoltage, overcurrent, overtemperature, and short circuit
Electrical isolation circuit with strong resistance to dust and electromagnetic interference
Standardized modular structure, easy disassembly and maintenance
Support hot swappable replacement, significantly reducing downtime for maintenance
Storing operation logs for more efficient fault tracing and debugging
V5 new firmware optimization improves program stability during operation
Low ripple power supply design, precise signal control without deviation
Rail mounted installation, compatible with standard control cabinet compartments for equipment
Compatible with 3D81 control components of the same series, flexible expansion
Original precision components with low failure rate during long-term continuous operation
Lightweight and compact board, saving installation space inside the cabinet
Conclusion: TEL 3D81-000044-V5 is compatible with multiple TEL semiconductor devices and is the core control component for stable production line operation.

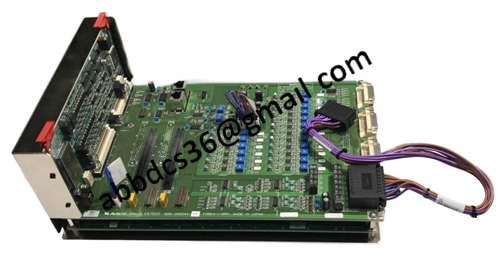

Product detailed pictures：
3D81-000044-V5
