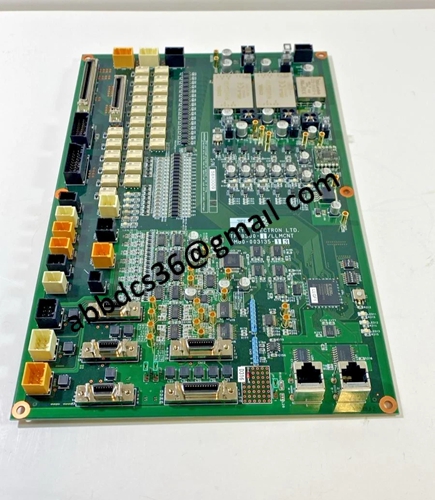

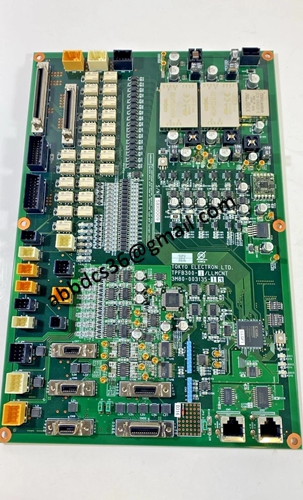

TEL 3M80-003135-13 Printed Circuit Board

Product Manual：

TEL 3M80-003135-13 Printed Circuit Board
Introduction: TEL 3M80-003135-13 is an original dedicated control PCB board for Tokyo Electronic Semiconductor Equipment
Multi layer precision wiring, stable high-speed signal transmission without crosstalk
Solder pad immersion gold process, anti-oxidation, long-term contact stability
Built in complete grounding shielding layer to resist electromagnetic interference in the workshop
Strong and weak current zoning wiring effectively reduces the risk of short circuits
High temperature resistant special substrate, suitable for continuous high temperature working conditions of the machine
Accurate standard positioning hole, directly replace the same model without modification
Reserve multiple testing points for easy and fast troubleshooting

Onboard filtering circuit ensures pure and clutter free sensing signals
The silk screen of the components is clear, and the disassembly and inspection of the wiring are easy to see at a glance
Compatible with TEL etching and cleaning series wafer process equipment
Seismic reinforcement of sheet metal, equipment vibration is less likely to cause welding and wire breakage
Dustproof solder mask coating reduces dust erosion in clean workshops
Multiple sets of standard plug-in terminals, compatible with various sensor components
Original factory complete aging testing, stable operation 24/7
Impedance matching circuit, control signal without delay distortion
Conclusion: TEL 3M80-003135-13 original PCB has strong compatibility and is commonly used as a replacement for circuit board spare parts in semiconductor equipment
