TEL HTE-OV5-A-11 Input/Output Module
Product Manual：
The TEL HTE-OV5-A-11 input/output module is a dedicated signal adapter board for semiconductor equipment, responsible for sensor acquisition and solenoid valve control, ensuring stability and reliability.
1. Multiple digital input channels, collecting limit and pressure sensor signals
2. Multiple digital output channels, driving valves, relay actuators
3. Equipped with an electrical isolation circuit to isolate strong and weak electrical interference
4. Built in signal filtering to reduce the impact of electromagnetic clutter in the workshop
5. Dedicated TEL device bus for high-speed communication with the main control
6. Integrated overcurrent and overvoltage protection to prevent circuit burnout
7. Onboard status indicator light, quickly diagnose channel faults
8. Standard board size, cabinet card slot direct insertion installation
9. Wide temperature adaptation, suitable for high and low temperature working environment of the machine
10. Channel independent circuit, single channel damage does not affect the overall performance
11. The terminal layout is neat, and the wiring maintenance operation is simple
12. Industrial grade PCB board, dust resistant process environment
13. Real time upload channel feedback for convenient equipment interlocking control
14. Firmware matching TEL etching and adhesive series equipment
15. Plug in structure, no need to modify wiring when replacing modules
The TEL HTE-OV5-A-11 input/output module has stable signal transmission and complete protection, and is the core IO control component of TEL semiconductor machines.

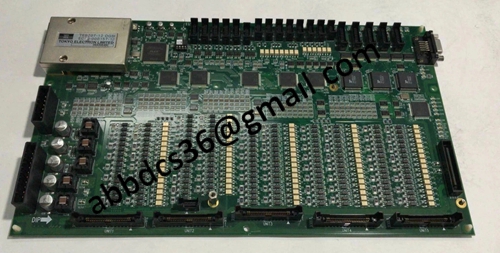

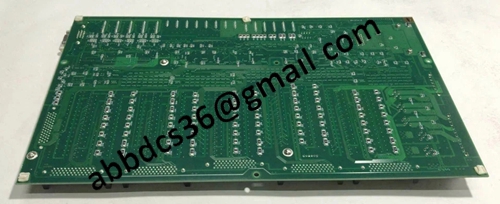

Product detailed pictures：
HTE-OV5-A-11
