TEL TTLD30-11 5880-000029-V2 Printed Circuit Board
Product Manual：
TEL TTLD30-11 5880-000029-V2 Printed Circuit Board Product Features
Introduction: TEL TTLD30-11 5880-000029-V2 is a printed circuit board specifically designed for semiconductor equipment. It comes with an original factory supplied circuit board and is compatible with thin-film process equipment.
High precision multi-layer wiring with low signal transmission loss
Resistant to corrosive gases in clean workshops and excellent anti-corrosion performance of substrates
Thickened copper foil conductive layer, less likely to generate heat during high current transmission
Full line electrical isolation, stable resistance to equipment electromagnetic interference
Reserve standard plug-in terminal positions to connect various control modules
V2 version optimizes circuit layout to reduce signal crosstalk issues
Integrated protective circuit with overcurrent and electrostatic protection capabilities
Original precision etching process, with minimal error in circuit size
Compatible with TTLD30 series machines, with assembly slots perfectly matched
High temperature resistant substrate material, suitable for long-term high-temperature working conditions of equipment
Standardized board size, direct installation of cabinet slots
Welding point reinforcement process, less prone to detachment and circuit breakage in vibration environment
Compatible with the same model of matching main control board, easy to expand equipment
Halogen free environmentally friendly board, compliant with semiconductor workshop specifications
Factory full path inspection, significantly reducing the factory defect rate
Conclusion: TEL TTLD30-11 5880-000029-V2 printed circuit board serves as the signal transmission substrate for equipment, ensuring stable operation of semiconductor process equipment.

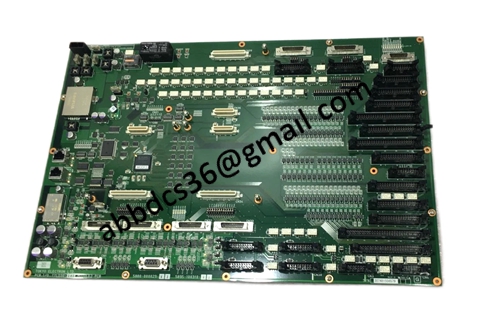

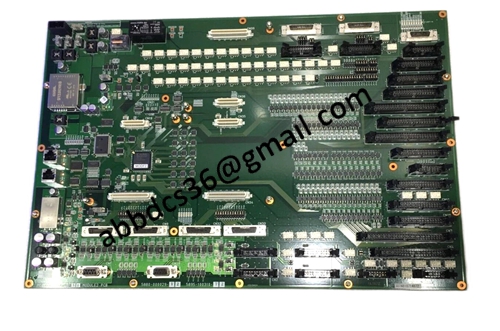

Product detailed pictures：
TTLD30-11 5880-000029-V2
