TSXPBY100 controller module
Product Manual：
TSXPBY100 controller module
TSXPBY100 is a Profibus DP communication control module in Schneider Electric’s Modicon Premium series, used to achieve bus communication and data exchange between PLC systems and remote I/O devices.
Product Features:
Belonging to the Modicon Premium series communication control module
Used for Profibus DP industrial fieldbus communication
Support main station mode operation
Can connect multiple remote I/O station devices
Support high-speed periodic data exchange
Capable of reading diagnostic information from the station
Support parameter configuration and remote management
High communication stability, suitable for industrial environments
Supports up to approximately 126 slave devices
The maximum communication distance can reach about 1200 meters (depending on the baud rate)
Equipped with node status monitoring function
Support modular installation method
Good compatibility with Premium series CPUs
Equipped with communication error detection and alarm functions
Suitable for distributed control system architecture
Summary:
TSXPBY100 is mainly used to build Profibus DP communication networks in industrial automation, and is an important bus interface module that connects controllers and field devices.

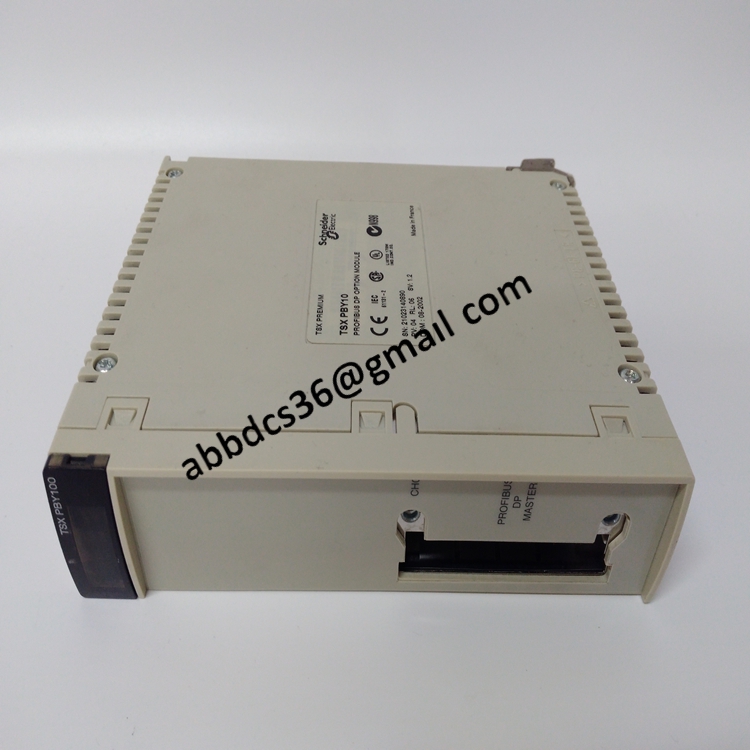

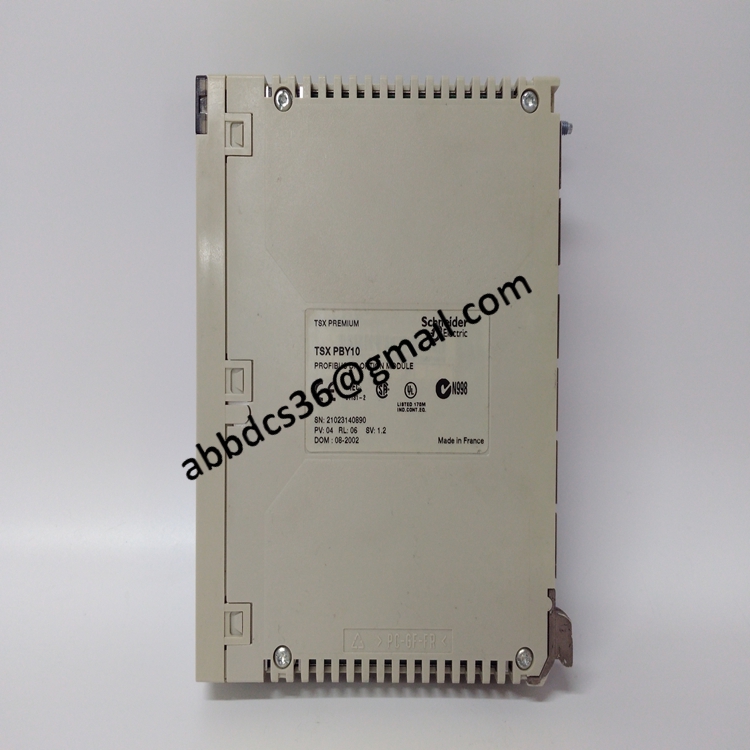

Product detailed pictures：
TSXPBY100
