UN0056a-P HEIR319429R1 Printed Circuit Board
Product Manual：
#UN0056a-P HEIR319429R1 Printed Circuit Board
1. Model: UN0056a-P HEIR319429R1, industrial control equipment printed circuit board
2. Onboard signal routing to achieve signal transmission between various components
3. High quality base material, high temperature resistance, aging resistance and long service life
4. Reasonable wiring layout to reduce signal crosstalk within the board
5. The welding process is reliable, and the solder joints of the components are firm and stable
6. Connect the board to the backplane to achieve overall signal connectivity
7. Integrate multiple signal circuits to adapt to system signal interaction
8. Reserve test points for easy fault detection and troubleshooting
9. Industrial grade workmanship, anti vibration suitable for cabinet installation
10. Equipped with basic surge protection and buffering against instantaneous voltage disturbances
11. Supports welding and assembly of multiple types of components, with high integration
12. Stable signal transmission ensures the coordinated operation of the entire machine and board
13. Adapt to harsh on-site environments in power plants and power stations
14. Standardized board size, compatible with cabinet slots
15. Direct replacement of spare parts can shorten equipment repair time
**Summary: UN0056a-P HEIR319429R1 printed circuit board is a signal carrier board for industrial control equipment. It has reliable wiring and solid technology, and can be used as a spare part for rapid replacement of equipment failures.
Product detailed pictures：

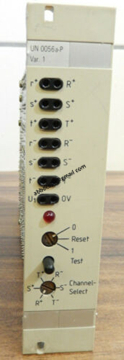

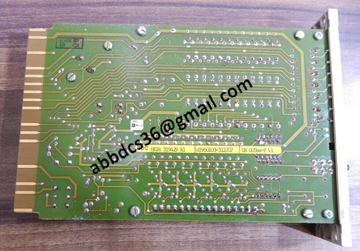

UN0056a-P HEIR319429R1
