UN0800A-P HEIR448194 redundant output module

Product Manual：

#UN0800A-P HEIR448194 redundant output module

1. Model: UN0800A-P HEIR448194, industrial redundant output module
2. Dual redundant output architecture to achieve hot backup function of output channels
3. Multiple relay output channels, outputting interlocking and alarm switch signals
4. Channel electrical isolation to block on-site electromagnetic interference
5. LED status indicator light, visually displaying the working status of the main and backup channels
6. Support automatic switching between primary and backup channels to improve system reliability
7. The output circuit is equipped with overcurrent protection to avoid damage to the board due to abnormal load
8. Backboard slot installation, compatible with supporting industrial control cabinets

9. Real time channel self-test to identify output circuit faults and abnormalities
10. Industrial wide temperature design, suitable for complex working conditions of power plants and stations
11. Built in surge suppression circuit to resist instantaneous voltage surges
12. High speed communication with the main control board, stable synchronization of primary and backup data
13. Standardized interface, simple configuration and debugging operation
14. Strong anti vibration performance, suitable for long-term operation environment of cabinets
15. Modular insertion and removal, convenient troubleshooting and replacement

**Summary: UN0800A-P HEIR448194 redundant output module has the ability of primary and backup redundant output, ensuring uninterrupted output of key switch signals, improving system fault tolerance, and facilitating on-site maintenance and repair.

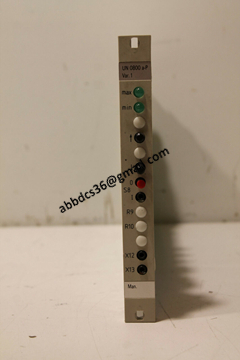

Product detailed pictures：

UN0800a-P

product video
