UN0806B-P interface board module
Product Manual：
#UN0806B – P interface board module
1. Model: UN0806B – P, Industrial Control Signal Interface Board Module
2. Implement signal docking and conversion between external devices and system motherboards
3. Multi channel signal interface channel, suitable for multiple types of signal access
4. Channel electrical isolation, blocking external interference signals from entering the system in series
5. LED status indicator light, providing intuitive feedback on the working status of each channel
6. Signal filtering processing, filtering out on-site power grid clutter interference
7. Backboard slot installation, compatible with corresponding series of industrial control cabinets
8. Signal level conversion, matching front-end and back-end hardware level specifications
9. Channel hardware self-test, quickly identify interface circuit abnormalities and faults
10. Industrial wide temperature design, suitable for complex working conditions of power plants and stations
11. Built in surge protection to suppress external transient voltage surges
12. Stable communication with the main control board and reliable data transmission
13. Compact structure, board occupies less cabinet slot space
14. Good anti vibration performance, suitable for long-term operation environment of cabinets
15. Plug in module, easy and convenient maintenance and replacement operation
**Summary: The UN0806B-P interface board module is responsible for the isolation and conversion of internal and external signals in the system, with strong anti-interference ability, achieving signal adaptation and transmission, and facilitating on-site equipment debugging and replacement of faulty spare parts.

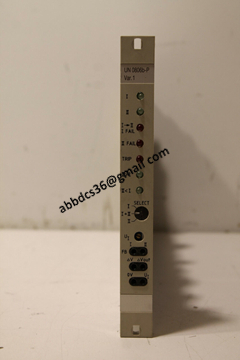

Product detailed pictures：
UN0806B-P
product video
