UN1024c-P HEIR318629R1 Remote Terminal Module
Product Manual：
#UN1024c-P HEIR318629R1 Remote Terminal Module
1. Model: UN1024c-P HEIR318629R1, industrial control remote terminal acquisition module
2. Remote collection of on-site switches and analog signals, completing data preprocessing
3. Multiple IO channels, compatible with digital input and output signal acquisition and processing
4. Channel electrical isolation to weaken the impact of electromagnetic interference on the site side
5. LED status indicator light, visually displaying module operation and communication fault status
6. Comes with a communication link to upload on-site data to the main control board
7. Support remote data reading and achieve interaction between on-site and remote monitoring
8. Backboard slot installation, compatible with matching system cabinet slot positions
9. Hardware self-test function, timely identification of channel disconnection and communication abnormalities
10. Industrial wide temperature rating, suitable for harsh on-site conditions in power plants and stations
11. Surge suppression circuit to resist external transient voltage disturbances and impacts
12. Board cache operation data to ensure data is not lost in case of communication interruption
13. Standardized hardware interface, easy configuration debugging and operation
14. Anti vibration and shock, suitable for long-term closed operation environment of cabinets
15. Modular insertion and removal, replacement of faulty spare parts, shortening repair time
**Summary: UN1024c-P HEIR318629R1 remote terminal module is used for on-site remote signal acquisition and forwarding, achieving distributed data interaction, reliable operation, and convenient on-site inspection and fault maintenance.

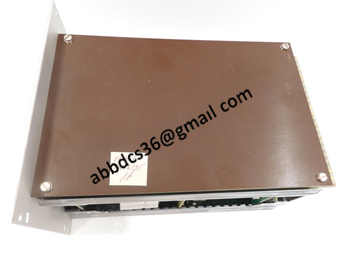

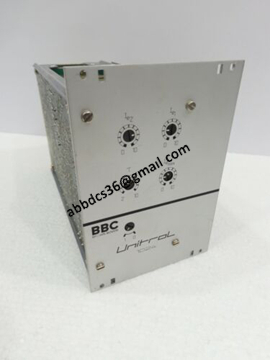

Product detailed pictures：
UN1024c‑P HEIR318629R1
