Varian E11292270 module digital I/O interface

Product Manual：

The Varian E11292270 module digital I/O interface is a dedicated signal interaction board for vacuum semiconductor equipment
1 Varian E11292270 version standard, equipment card slot can be directly plugged and installed
Isolation of 2 digital input and output channels, stable signal acquisition and output without interference
3 photoelectric isolation circuits to isolate electromagnetic noise from vacuum equipment on site
4 channels of synchronous I/O transmission and reception, rapid linkage of chamber valve and pump body signals
5. Low signal response delay, no lag or lag in device action regulation
6 low-power circuit design, long-term continuous operation with low temperature rise
7 wide temperature tolerance design, suitable for high and low temperature process environments of vacuum equipment

8 compatible with Varian ion pump and vacuum testing machine, no need for modification
9. Integrated surge and electrostatic protection to protect the precision circuit components of the board
10 wiring highly integrated, saving installation space inside vacuum equipment
11 supports uninterrupted semiconductor vacuum production operations 24/7
12 board surface corrosion-resistant and dustproof, suitable for clean vacuum production line conditions
13 standardized wiring terminals, easy and effortless maintenance, disassembly, and debugging operations
14 compatible analog signal collaborative acquisition, higher overall monitoring efficiency
15 Varian E11292270 matches the original accessory parameters perfectly, with high compatibility for replacement
The Varian E11292270 module’s digital I/O interface signal transmission is stable, making it a reliable accessory for repairing and replacing vacuum semiconductor equipment

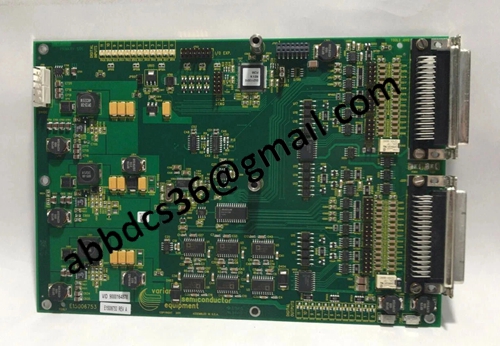

Product detailed pictures：

E11292270
