WOODWARD 5466-258 Independent I/O Module
Product Manual：
WOODWARD 5466-258 Independent I/O Module (MicroNet Series Simplex Discrete I/O) Core Features:
Positioning: MicroNet/Vertex Pro platform specific simplex discrete I/O module, suitable for turbine/speed regulation/process control
Channel specifications: 48 dry contact discrete inputs, 24 relay discrete outputs, high-density signal access
Power supply: 18-32VDC wide voltage input, 24VDC typical power consumption 6.5W
Architecture compatibility: Supports simplex and redundant systems, compatible with 8-slot/14 slot MicroNet chassis
Address configuration: Rotate switch to set module address, flexible deployment
Industrial isolation: Channel level electrical isolation, strong resistance to electromagnetic interference
Status indicator: Red fault LED, quick diagnosis
Environment: working temperature 0-55 ℃, storage temperature -40-105 ℃, pollution level 2, overvoltage class II
Certification: UL, ATEX, CE, DNV, ABS, LRS, suitable for use in Class I, Zone 2 hazardous areas
Installation: Rack mounted, compatible with MicroNet system cabinets
Response: Deterministic real-time response, meeting high-speed control logic requirements
Hot swappable: supports live maintenance without interrupting system operation
Connection: Connect the FTM terminal module through high-density cables, following wiring specifications
Application: Key control scenarios such as power generation, oil and gas, compressors, industrial speed regulation, etc
Status: Discontinued, new/used spare parts still available
WOODWARD 5466-258 provides stable discrete signal acquisition and driving capabilities for MicroNet control systems with high-density, high reliability, strong isolation, and hazardous area certification.

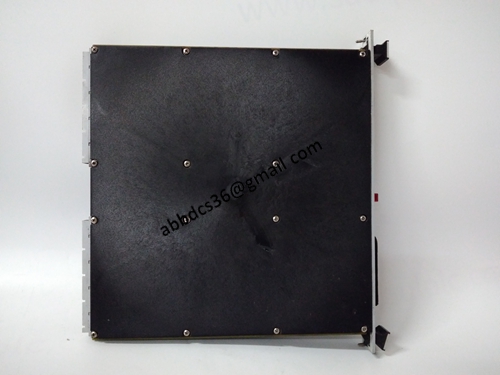

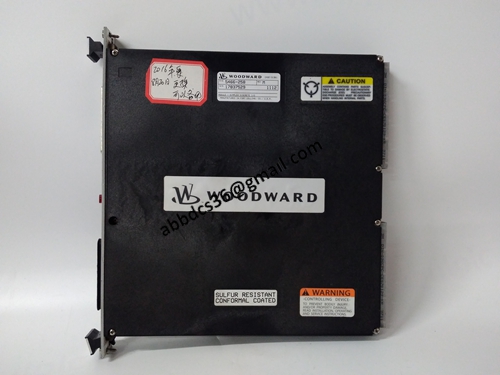

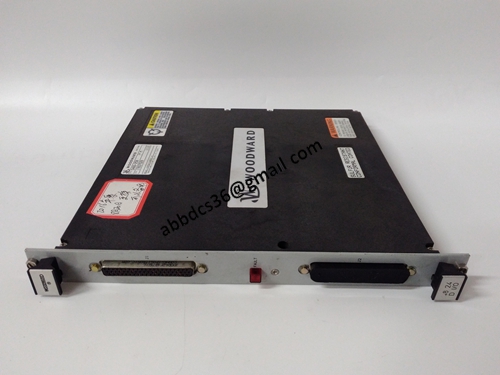

Product detailed pictures：
5466-258
