WOODWARD 5501-467 Power Supply Module
Product Manual：
WOODWARD 5501-467 power supply module (MicroNet Simplex simplex power supply) core features:
Specially designed for Woodward MicroNet Simplex/Plus chassis, with a simplex architecture, providing core power supply for control systems
Wide voltage input: 180-264VAC/VDC (220V nominal), compatible with both AC and DC inputs
Multi channel stabilized DC output, providing power for the CPU, I/O, and communication modules inside the chassis
High efficiency (>85%), low heat generation, suitable for long-term continuous operation
Electrical isolation of input and output to enhance system anti-interference and safety
Built in multiple protections for overvoltage, overcurrent, and short circuit to prevent load damage
Four LED status indicator lights on the front panel, visually displaying power health and faults
Industrial wide temperature range: working -20 ℃~+60 ℃, storage -40 ℃~85 ℃
Rack mounted installation, compatible with MicroNet standard chassis, compact structure
Adopting industrial grade components, high reliability design, suitable for harsh industrial environments
50 pin D-Sub high-density connector, with standardized wiring and reliable connections
Support quick replacement, easy maintenance, and reduce downtime
Compliant with UL, CE, ATEX and other industrial safety certifications, suitable for use in hazardous areas
Weight approximately 1-2.3kg, size 140 × 210 × 40mm, flexible installation
Applied to key industrial scenarios such as power generation, oil and gas, compressors, turbine control, etc
WOODWARD 5501-467 provides safe and continuous power assurance for MicroNet control systems with stable output, multiple protections, and industrial grade reliability.

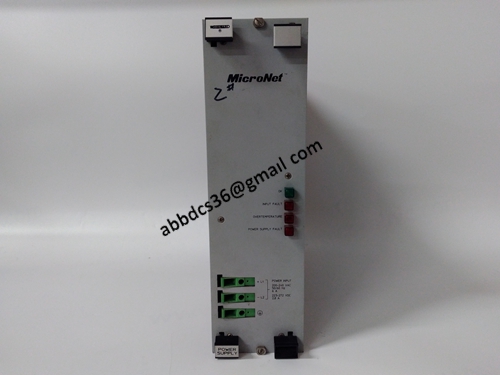

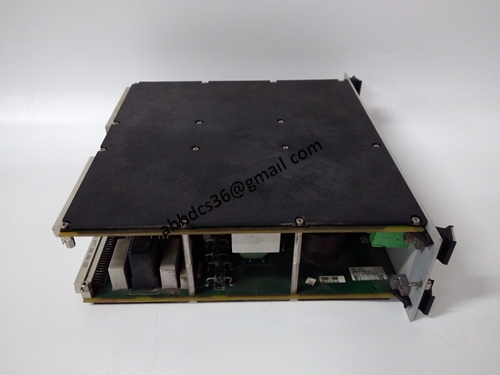

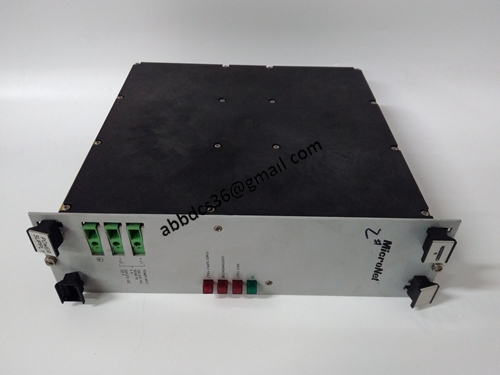

Product detailed pictures：
5501-467
product video
