XVC768102 3BHB007211R102 Input/Output Module
Product Manual：
#XVC768102 3BHB007211R102 Input/Output Module
1. Model: XVC768102 3BHB007211R102, excitation system IO input/output module
2. Integrate multiple digital input and output channels to collect and output interlocking protection switch signals
3. Channel independent electrical isolation to isolate electromagnetic interference from the on-site power grid
4. Onboard LED indicator lights, with clear visibility of the on/off and fault status of each channel
5. Input circuit hardware filtering to remove on-site clutter interference signals
6. Backboard slot docking, compatible with UNITOL series excitation cabinets
7. The signal response is rapid and meets the timing requirements of the unit protection interlock
8. Hardware channel self check, quickly identify disconnection and circuit abnormal faults
9. Industrial wide temperature design, suitable for complex working conditions of power plants and stations
10. Built in surge suppression to resist transient voltage surges in the power grid
11. High speed communication with the main control board, reliable synchronization of data instructions
12. Standard hardware interface, simple and convenient configuration and debugging
13. Strong anti vibration performance, suitable for long-term fixed installation of cabinets
14. Plug in card, replacement of faulty spare parts to shorten downtime
15. Low power consumption, supporting 7 × 24-hour uninterrupted continuous operation
**Summary: The XVC768102 3BHB007211R102 input/output module is used to collect and output excitation system switch signals for interlocking protection logic. It has strong anti-interference ability and is easy to maintain on site.

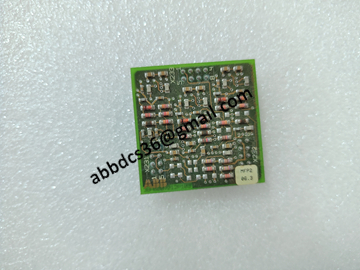

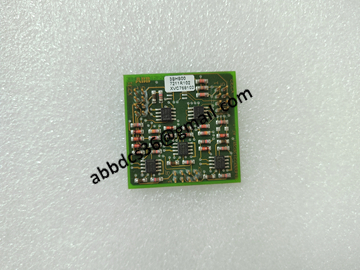

Product detailed pictures：
XVC768102 3BHB007211R102
product video
