Yokogawa AIP504-51 coupler module
Product Manual：
Yokogawa AIP504-51 is a dedicated coupler module for the V-NET bus of Yokogawa CS3000 system, responsible for data exchange and transfer between system network segments.
15 characteristics
1. AIP504-51 is equipped with G3 dust and anti-corrosion configuration, suitable for working conditions in chemical plant rooms with high dust levels.
2. Based on the V-NET bus protocol, control data can be transmitted in real-time at a maximum speed of 1Mbps.
3. 24V AC/DC universal power supply, suitable for conventional distribution specifications of industrial control cabinets.
4. Compatible with the AIP504-50 hardware base of the same series, the slots can be directly interchanged for installation.
5. Equipped with a built-in link fault self-test indicator light, it intuitively checks for bus disconnection abnormalities.
6. Partition data diversion and control to avoid congestion on a single network segment that hinders the communication of the entire DCS system.
7. Modular plug-in structure, online replacement without stopping or interrupting system operation.
8. Wide temperature operating range, stable and continuous operation in an environment of -20 ℃~+60 ℃.
9. Compatible with AFF50 series shelves, it is a standard networking accessory for Yokogawa main control racks.
10. Built in EMC anti-interference circuit to resist on-site electromagnetic interference from frequency converters and motors.
11. Implement isolation of multiple V-network segments, ensuring that faulty segments do not spread to the entire control system.
12. Compact board size, saving cabinet slots and facilitating later system expansion and expansion.
13. Support online reading of module operating parameters by upper level network management, making remote operation and maintenance convenient.
14. Original factory equipment aging detection, low long-term operation failure rate in chemical and power scenarios.
15. AIP504-51 is commonly used in petrochemical and power plant DCS control system bus networking projects.
ending
AIP504-51 is an indispensable bus coupling accessory for the construction of the Yokogawa CS3000 distributed control system.

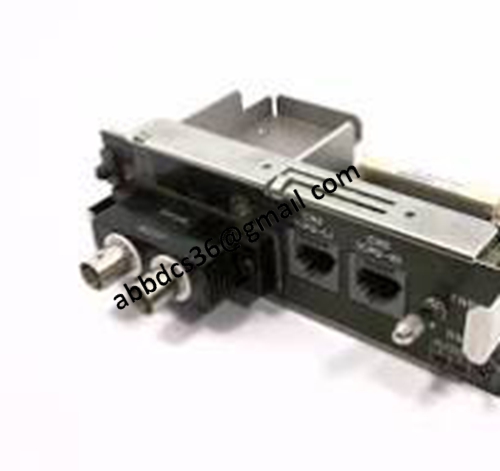

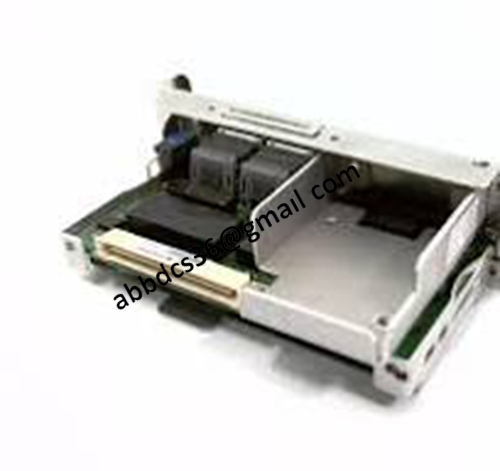

Product detailed pictures：
