ZYGO 8070-0102-01 Laser Head
Product Manual：
ZYGO 8070-0102-01 Laser Head
Introduction: ZYGO 8070-0102-01 is equipped with an original laser head and dual frequency helium neon light source for the 7702 interferometer. It is the core optical component of semiconductor precision displacement detection, with stable measurement accuracy and suitable for long-term use in dust-free production lines.
Dual frequency orthogonal polarization laser output, interferometric measurement resolution reaches sub nanometer level
632.8nm standard wavelength, long-term stable wavelength, reliable measurement reference
20MHz fixed frequency difference, strong resistance to air disturbance and electromagnetic interference
6mm standard beam aperture, supporting up to 25 meters of long-distance detection
Aluminum alloy integrated casting shell, strong rigidity, suppresses thermal deformation and deviation from the optical path
The beam pointing is stable, and the optical path is not easily deviated in temperature changing environments
Standard dedicated signal interface, can be directly connected to the original factory measurement control board
Equipped with a running status indicator light, quickly identify optical path faults
± 15V standard DC power supply, reasonable power consumption control, moderate heating
Industrial wide temperature element devices, constant temperature workshop can work continuously for 7 × 24 hours
Original factory standardized size, can directly replace old laser heads of the same model
Built in light path dust-proof structure, suitable for clean factory dust environment
Complete optical calibration factory, no need to repeatedly debug the optical path on the machine
Suitable for wafer lithography and precision platform positioning displacement detection scenarios
Modular integrated design, convenient disassembly and maintenance of optical path components
Conclusion: ZYGO 8070-0102-01 has high optical accuracy, stable and durable operation, and is the preferred original laser light source component for repairing and replacing semiconductor precision measuring equipment.

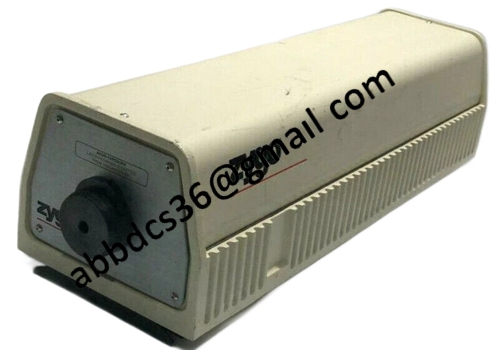

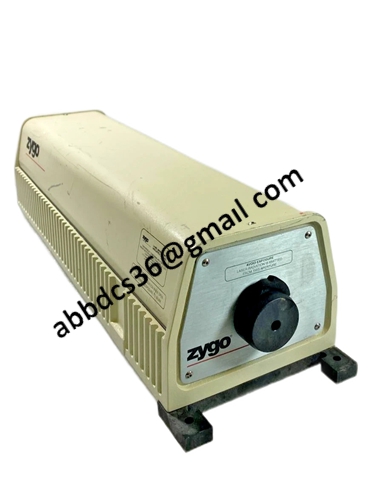

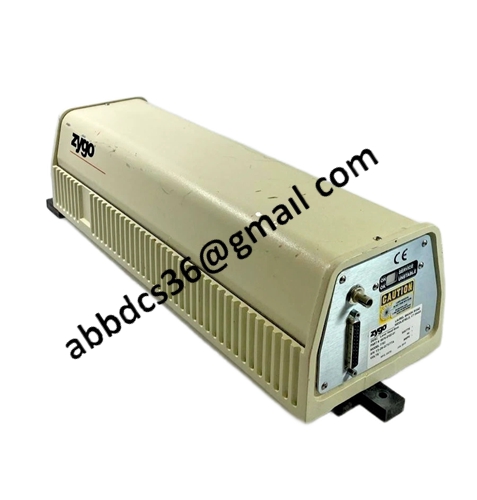

Product detailed pictures：
8070-0102-01
