GDC801A 3BHE024747R0101 Control Board
Руководство по продукту：
3BHE024747R0101 Control Board
ABB excitation control core board, compatible with medium and high voltage variable frequency excitation systems, with clear model identification.
Responsible for closed-loop regulation of excitation current to ensure stable and controllable output of the generator/motor.
Working voltage 230VAC, output frequency 40kHz, suitable for high-power driving scenarios.
Built in multi-channel AD/DA conversion enables high-precision voltage/current sampling and regulation.
Equipped with 4 serial ports and 7 network ports, supporting multi protocol communication and system interconnection.
Port isolation voltage of 520VDC enhances anti-interference and electrical safety performance.
Support redundant control and fault switching to improve system operation continuity.
Built in multiple protections for overvoltage, overcurrent, and overload to prevent device damage.
Industrial grade wide temperature design, working temperature -20 ℃~+55 ℃, suitable for harsh working conditions.
Control accuracy ± 0.1%, reduce dynamic errors, and improve control quality.
Модульная структура, supporting hot plugging and online maintenance, reducing downtime risk.
Compliant with industrial safety certifications such as ISO9001, CE, UL, и т. д..
Maximum input current 40mA, low-power operation, reducing heat generation.
Widely used in generators, frequency converters, and high-power motor drive systems.
It can directly replace original spare parts and is compatible with the original excitation control architecture.
The 3BHE024747R0101 control board provides stable core control for medium and high voltage variable frequency excitation systems with high precision, высокая надежность, and high isolation characteristics.

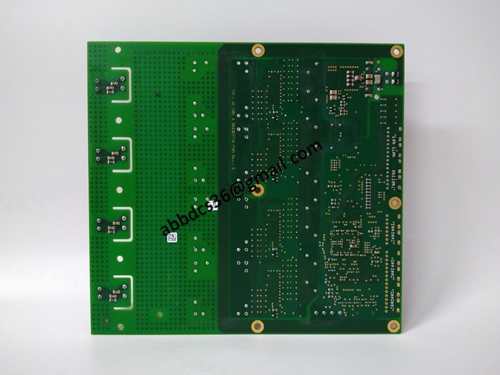

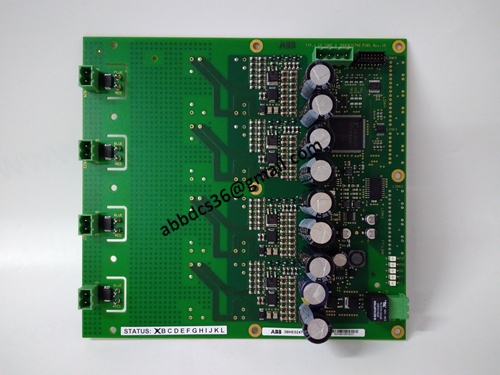

Подробные фотографии продукта：
3BHE024747R0101
