5X00106G02 Analog Input Module
Руководство по продукту：
5X00106G02 Analog Input Module is an industrial automation module used to convert the analog signals output by on-site sensors into digital signals for processing by PLC, DCS, or other control systems. It is commonly used in scenarios such as process control, factory automation, energy management, и т. д..
core functionality
Receive multiple analog input signals, including voltage signals (0-10 V, ± 10 V) and current signals (4-20 mA, 0-20 mA)
Support various sensors, such as temperature sensors (thermocouples, PT100/1000), pressure transmitters, flow meters
High precision A/D conversion ensures the stability of signal acquisition
Built in isolation protection to prevent external interference from affecting the control system
Technical Specifications
Number of input channels: usually 8-16 channels (specific model needs to be confirmed)
Accuracy: ± 0.1%~± 0.2% FS
Sampling rate: up to several hundred Hz
Isolation voltage: 250-500V DC
Support signal types: Напряжение, текущий, thermocouple RTD（Pt100/Pt1000）
Working temperature: -20 ℃ to+70 ℃
Application scenarios
Industrial site analog data acquisition
Monitoring of process parameters such as temperature, pressure, and flow rate
Voltage and current collection in energy monitoring system
Analog input interface of PLC/DCS system

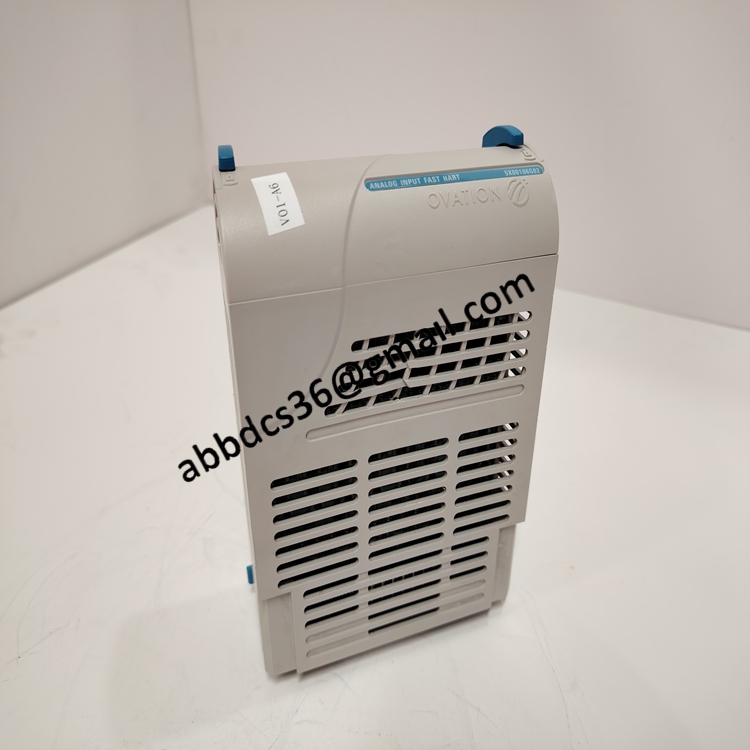

5X00106G02 Подробные фотографии продукта：
