5X00419G02 Ethernet Link Controller
Руководство по продукту：
The 5X00419G02 Ethernet Link Controller Module is an industrial process control module commonly used in Distributed Control Systems (DCS) for high-speed data transmission and network connection between controllers and Ethernet devices.
core functionality
Provide a 10/100 Mbps Ethernet interface to achieve high-speed data transmission between the control system and on-site network devices
Supports full duplex mode to ensure simultaneous transmission and reception, improving communication efficiency
Compatible with industrial protocols such as TCP/IP, Modbus TCP, UDP, and can be interconnected with systems such as PLC and SCADA
Support time synchronization and data timestamp to ensure consistency of node data within the system
The status indicator light intuitively displays the working status of the module and link, making it easy to maintain and diagnose faults
Technical Specifications
Data rate: 10/100 Mbps adaptive
Interface type: Ethernet RJ45
Protocol support: TCP/IP, Modbus TCP, UDP
Full/Half Duplex: Supports Full Duplex
Working temperature: -40 ° C to+70 ° C
Power supply: typically 24 VDC
Installation method: Suitable for rack or control cabinet integration
Industrial Design: Anti electromagnetic interference, suitable for harsh industrial environments
Application scenarios
DCS network core communication, realizing the data hub between the controller, Модуль ввода-вывода, and monitoring system
Real time data exchange between on-site equipment and upper control system
High speed and reliable data transmission in industrial networks such as energy, электричество, нефтехимия, металлургия, и производство
Support integration of industrial protocols with systems such as PLC, SCADA, MES, и т. д.

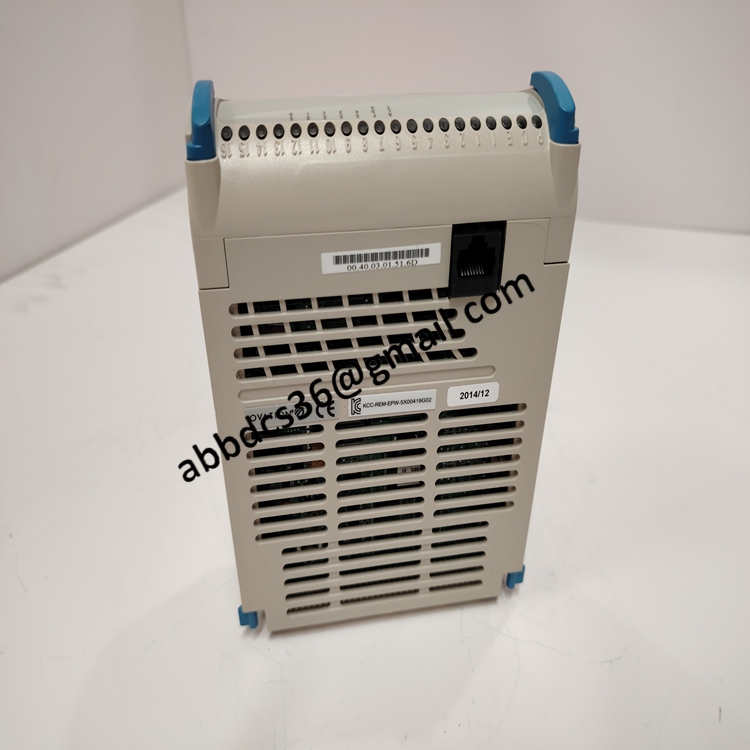

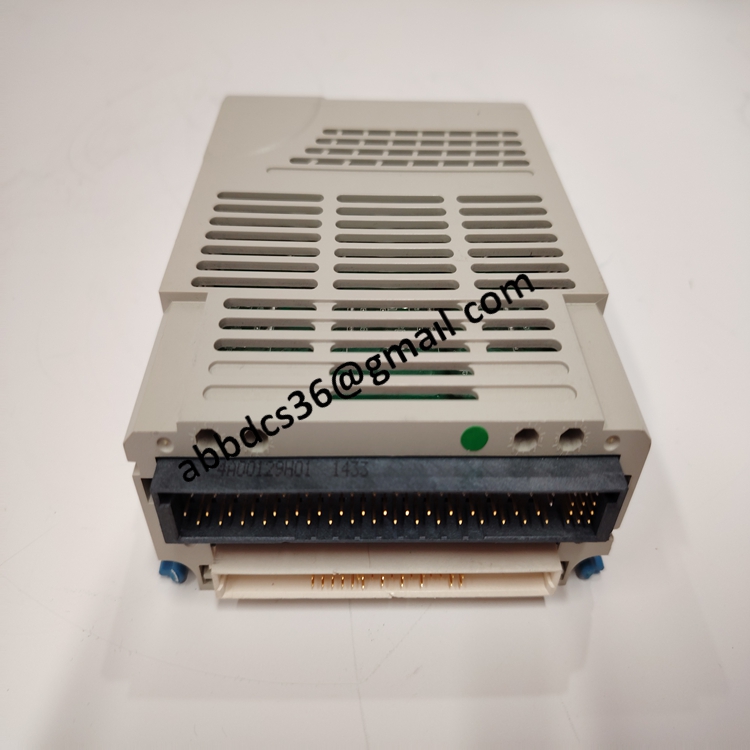

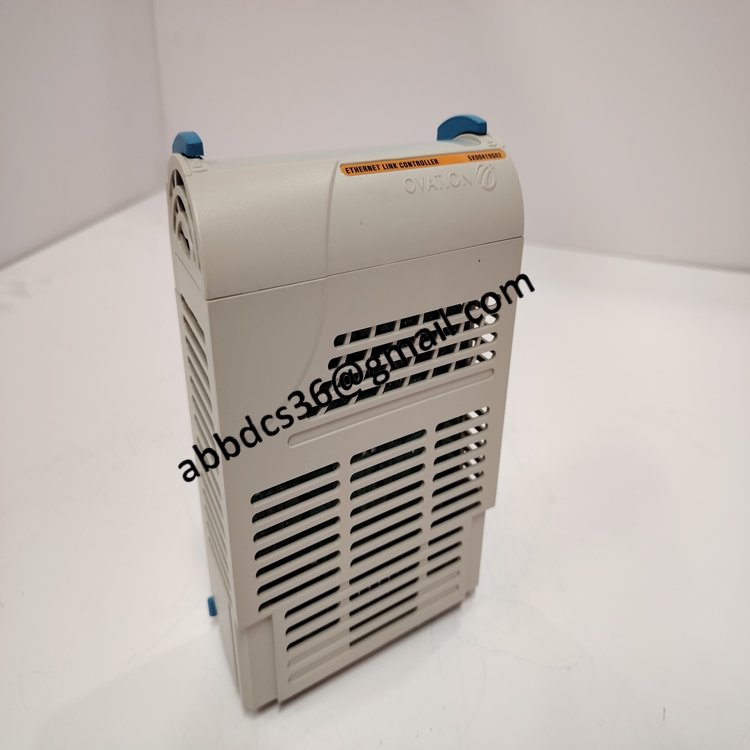

5X00419G02 Подробные фотографии продукта：
