ADM-1036-1 interface board module

Руководство по продукту：

ADM-1036-1 is an industrial system interface board module that mainly realizes signal conversion and communication docking between different units.

1. Multiple signal channels are used to complete the signal interaction between the main control unit and the on-site board
2. Onboard isolation protection, isolating high and low voltage circuits to reduce interference effects
3. Support multiple industrial communications to achieve high-speed data exchange between boards
4. Signal conversion processing, adapted to transmit signals of different levels to each other
5. Equipped with channel fault self-test to quickly identify abnormal link states
6. Standard rack slot installation, docking system backplane bus
7. Встроенный индикатор состояния, visually viewing the link connectivity status
8. 24V DC backplane power supply, низкое энергопотребление при эксплуатации

9. Low signal transmission delay, meeting the real-time communication requirements of the system
10. Circuit board protective coating, suitable for control cabinet dust and humid environment
11. Модульная структура, convenient for system expansion and spare parts replacement
12. The layout of the wiring terminals is neat, and on-site debugging and wiring are convenient
13. Support signal filtering to suppress on-site electromagnetic noise interference
14. Широкий температурный диапазон, suitable for harsh working conditions in industrial sites
15. Compliant with EMC industry standards, ensuring long-term continuous operation

ADM-1036-1 is widely used in transmission and DCS control systems, serving as an internal signal bridge to ensure reliable transmission of equipment data.

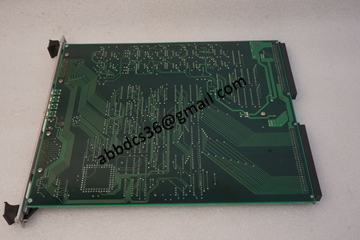

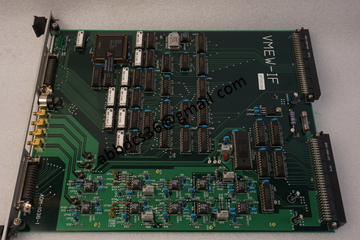

Подробные фотографии продукта：

ADM-1036-1
