ОГРОМНЫЙ 0100-20157 Загрузчик печатных плат
Руководство по продукту：
ОГРОМНЫЙ 0100-20157 PCB loading interconnect board adaptation application material wafer loader equipment.
1. Equipped with a motherboard and loader interconnection line to coordinate the transmission of control signals
2. Многослойная проводка высокой плотности, compact layout in narrow machine space
3. Precise impedance control, low loss transmission of high-frequency sensing signals
4. Large area copper grounding to weaken electromagnetic interference in the workshop
5. Array thermal conductive via, stable and uniform heat dissipation during long-term operation
6. The gold-plated solder pads are resistant to repeated disassembly and assembly, and are not easily prone to virtual soldering and oxidation
7. Layered routing of strong and weak electricity to isolate power supply noise interference
8. Differentiate the length of the line to reduce signal crosstalk delay
9. High heat resistant substrate, suitable for machine cold and hot cycle working conditions
10. Reserve shielding installation points to enhance the anti-interference ability of the entire machine
11. Micro porous electroplating process ensures long-lasting and reliable interlayer conductivity
12. Clean solder mask coating, влагостойкий, пыленепроницаемый, and anti particle pollution
13. Component reinforcement patch, capable of withstanding continuous vibration of equipment
14. Original factory standard circuit, perfectly matched with AMAT loader system
15. Standard positioning hole position, replacement and disassembly without changing the circuit
ОГРОМНЫЙ 0100-20157 PCB loading interconnection board ensures stable signal communication between the loader and the host, ensuring the normal operation of the wafer loading process.

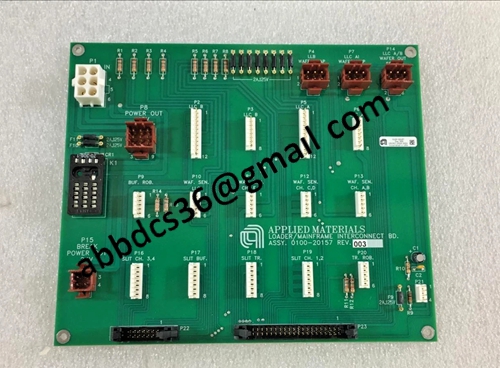

Подробные фотографии продукта：
0100-20157
