Bobst 701-1106B main control circuit board

Руководство по продукту：

Bobst 701-1106B main control circuit board
This is the core control board of the 700 series equipment, installed in the 703-KS control box, which coordinates the overall operation of the machine and has strong stability.
As the core unit of the system, responsible for the logical operation of the whole machine and the issuance of action instructions
Onboard storage chip, capable of storing device operating parameters and control programs
Support multi class board communication linkage, coordinate the work of I/O, driver, и силовые модули
24V DC power supply, strong voltage adaptability, able to cope with on-site power grid fluctuations
Built in filtering and isolation circuit to resist electromagnetic interference and ensure signal transmission
Equipped with multiple sets of indicator lights, the power, операция, and fault status can be visually checked
Standard slot structure, compatible with series racks, can be replaced in situ without changing the wiring

The board surface adopts a three proof process, which is moisture-proof, dustproof, and oil proof, and is suitable for the workshop environment
Industrial grade component selection, earthquake resistant and temperature resistant, capable of long-term continuous operation
Gold finger interface anti-oxidation, stable contact, reduces line faults
Integrated multiple protection circuits, automatic protection board body in case of overvoltage and short circuit
Overall low power consumption, low temperature rise during full load operation, and long service life
The layout of the line is neat, the markings are clear, and daily maintenance is convenient
Compatible with multiple mainstream Bosch models such as die-cutting, box pasting, and gravure printing
Following the original design specifications, it can be put into normal use after replacement and debugging
Общий, the main control board has comprehensive functions and good compatibility, making it a core component for the maintenance and replacement of equipment electrical control systems.

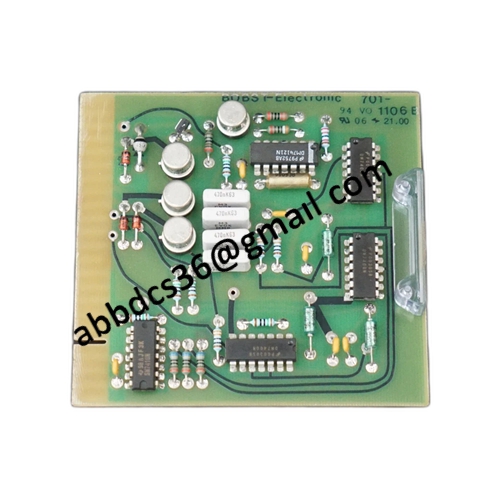

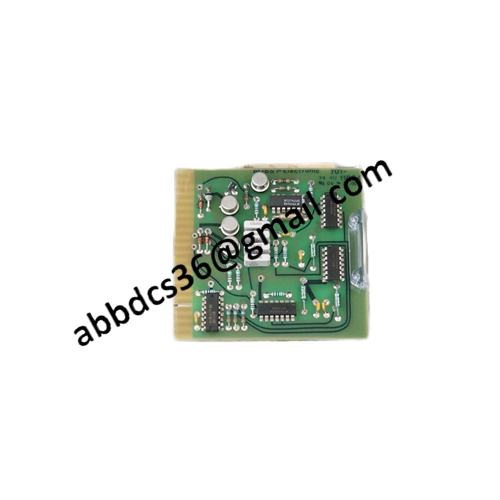

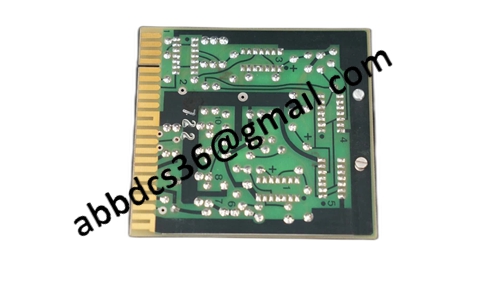

Подробные фотографии продукта：

701-1106Б
