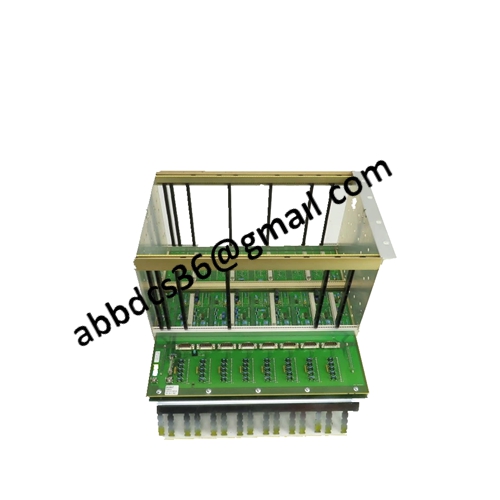

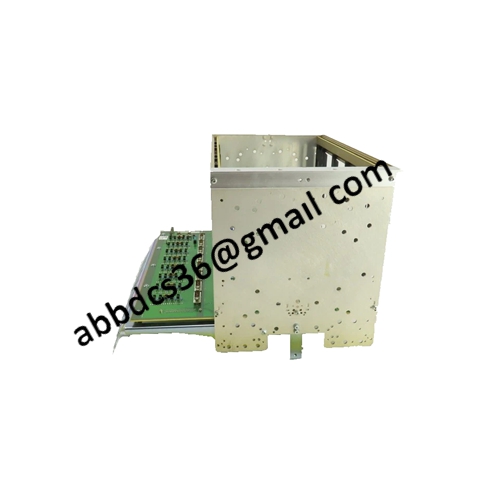

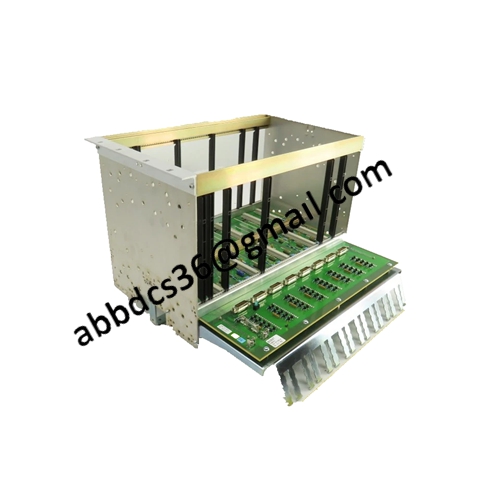

BOBST 707-JN 06/0707-000-JN CPU circuit board rack
This is the CPU motherboard rack/backplane of BOBST 707 ряд (Registron register control system), also known as 707-JN 06 rack, part number 0707-000-JN, used for the installation of gravure/flexographic printing machine main control units and bus interconnection.
Original part number: 0707-000-JN (commonly labeled as 707-JN 06, 707JN06)
Equipment series: BOBST 707 system (Registron register control)
Compatible models: S2000/S920 gravure printer, some 747/757 series printing machines
Functional positioning: CPU board+I/O board installation rack+system bus backplane, carrying 707 series CPUs and various I/O sub boards
Структурная форма: Standard 6-slot/8-slot metal rack with backplane bus and power distribution
Backplane bus: 707 dedicated parallel bus, integrating high-speed data, control signals, and power supply
Compatible boards: 707-CPU, 707-MM, 707-T, 707-I/O, 707-COM, и т. д.
Power supply specification: 24VDC input, centralized distribution on the backplane, with overcurrent/reverse protection
Mechanical characteristics: Industrial grade steel frame, earthquake resistance, dust prevention, and good heat dissipation
Interface configuration:
Backboard gold finger slots (6-8)
External 24V power terminal
System communication interface (RS-485/optional Ethernet)
Grounding terminal (EMI/EMC compliant)
Environmental tolerance: -10 ℃~+60 ℃, suitable for printing workshop oil pollution, dust, humidity environment
Способ установки: Standard rail installation inside the cabinet, in-situ replacement without changing the wiring
Common faults: Backplane virtual soldering, poor bus contact, abnormal power supply, resulting in unstable communication between CPU/register system
