Delta Tau 603625-102A UMAC-CPCI Data System PCB
Руководство по продукту：
Delta Tau 603625-102A UMAC-CPCI Data System PCB
1. Delta Tau 603625-102A follows the 3U CPCI standard board specifications
2. Adapt UMAC-CPCI system backplane bus to achieve high-speed data exchange
3. Equipped with DSP motion processing unit for multi axis motion data computation
4. Onboard SRAM storage, caching program and motion parameter data
5. Supports UBUS backplane communication and can be connected to multiple types of UMAC expansion cards
6. Hardware watchdog circuit, automatic protection reset for system abnormalities
7. Multi channel encoder signal acquisition interface, receiving position feedback signals
8. Isolation design of board signals to reduce electromagnetic interference in industrial sites
9. Индикатор состояния панели, providing intuitive feedback on operation and fault information
10. Support multi axis PID servo algorithm operation processing
11. Golden finger CPCI plug-in structure, convenient disassembly and maintenance of cabinet
12. Industrial grade PCB board, anti vibration and adaptable to automation equipment working conditions
13. Reserved jumper configuration, flexible modification of board working mode
14. Support real-time multitasking processing, synchronized control of motion and IO
15. Equipped with overcurrent and overvoltage hardware protection to enhance the lifespan of the board
Delta Tau 603625-102A UMAC-CPCI data system PCB, as the core board of UMAC-CPCI system, is used for multi axis motion control and data processing of high-end automation equipment.

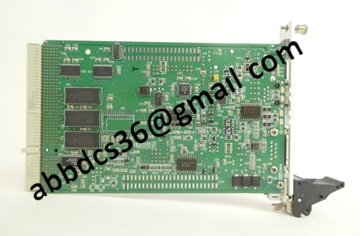

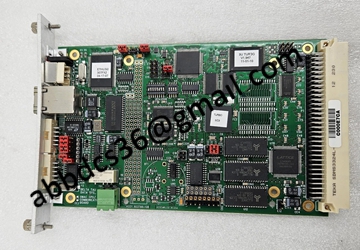

Подробные фотографии продукта：
Delta Tau 603625-102A UMAC-CPCI
