DS200SDCCG1AGD/DS215SDCCG1AZZ01B Drive Control Card
Руководство по продукту：
DS200SDCCG1AGD/DS215SDCCG1AZZ01B drive control cards are both core SDCC drive control boards of GE Mark V Speedtronic system, compatible with AC2000/DC2000/EX2000 drive systems.
Three processor parallel architecture: Built in driver control processor (DCP), motor control processor (MCP), and co motor processor (CMP), responsible for handling control, I/O, and complex algorithms.
Dual port RAM sharing: high-speed data exchange among multiple processors, supporting real-time closed-loop control and multitasking parallelism.
10 channel LED diagnosis: binary/BCD encoded display of fault codes, intuitive operation status and fault location.
Fully digital closed-loop control: achieves precise adjustment of speed/torque/excitation, suitable for gas turbines, steam turbines, and industrial transmissions.
Industrial grade wide temperature range: -40 ℃~+70 ℃, suitable for harsh environments such as power plants and metallurgy.
Multiple protection mechanisms: перенапряжение, overcurrent, short circuit, EMI filtering, board level self-test and fault isolation.
Standard slot installation: compatible with Mark V cabinet backboards, plug-in design, easy maintenance.
Multi protocol communication: Supports LAN, RS-485, Modbus, enabling system networking and remote monitoring.
Conformal coating PCB: an industrial grade board that is moisture-proof, dust-proof, and vibration resistant, extending the lifespan of the board.
Firmware programmability: Supports ST2000 software configuration and adapts to different driving conditions and parameters.
Высокая надежность конструкции: Industrial grade components that support 24-hour continuous full load operation.
Сильная совместимость системы: Perfectly compatible with Mark V, TMR triple redundancy, and DirectO-MATIC 2000 systems.
Fault isolation capability: Single channel faults do not affect the overall system and support fault operation mode.
Classic discontinued spare parts: designed specifically for maintenance, replacement, and upgrade of old Mark V drive systems.
Official manual support: Technical document GEI-100029, providing complete configuration and debugging guidelines.
The DS200SDCCG1AGD/DS215SDCCG1AZZ01B adopts a three processor+dual port RAM architecture and is the core control center of the Mark V drive and excitation system.

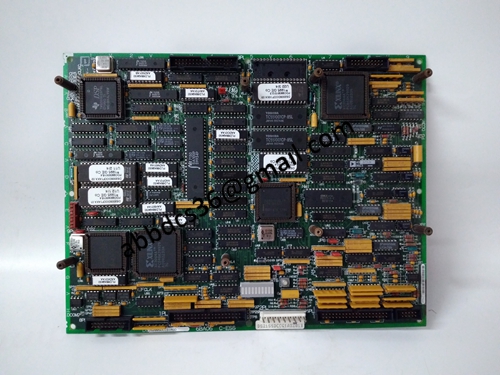

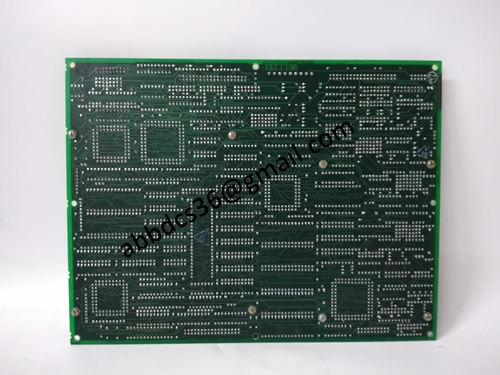

Подробные фотографии продукта：
DS200SDCCG1AGD/DS215SDCCG1AZZ01B
