DS200TCEBG1ACE Communication Board

Руководство по продукту：

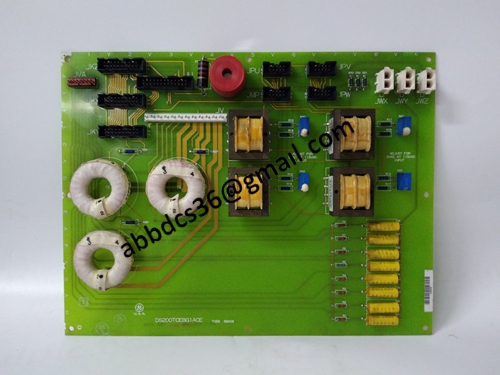

DS200TCEBG1ACE Communication/Protection Terminal Expansion Board (Mark V)
Compatible with GE Mark V Speedtronic system, to protect the terminal expansion+signal conversion core board.
Hardware architecture: including 4 signal transformers, 3 bayonet connectors (JWX/JWY/JWZ), 1 26 pin, 4 10 pin, и 3 20 pin connectors.
Functional positioning: Transfer CT/PT, flame detection, overspeed signals, provide signal conditioning and isolation for TCEA/TCCB.
Интерфейс: Multiple sets of industrial grade connectors, compatible with on-site sensors and system backplane interconnection.
Конструкция изоляции: Built in signal transformer to achieve electrical isolation of channels and resist on-site EMI interference.

Источник питания: 24VDC backplane power supply, low power consumption, стабильный и надежный.
Среда: * * -20 ℃~60 ℃ * * Широкий температурный диапазон, multi-layer PCB+three proof coating, suitable for harsh working conditions of power plants/gas turbines.
Установка: Standard cabinet slot type, easy to plug and maintain.
Диагностика: Onboard status indication for easy troubleshooting and signal detection.
Атрибут запасных частей: Mark V system discontinued spare parts, used to protect circuit signal expansion and conversion.
DS200TCEBG1ACE is the signal hub of the Mark V system protection circuit, responsible for isolating, transferring, and conditioning critical protection signals.
