DS200XDSAG1A Relay Output Board
Руководство по продукту：
Обзор продукта
DS200XDSAG1A is a relay output board in the Mark series engine control system, used to convert digital signals from the controller into relay actions, thereby driving field actuators such as pumps, клапаны, alarms, индикаторные лампы, и т. д..
This module plays a core role in signal execution and action control in industrial control and engine management systems, ensuring that system instructions can be reliably transmitted to on-site equipment.
основная функциональность
Digital quantity control: Convert CPU output signals into relay switch actions to achieve on-site device control.
Многоканальная поддержка: It can drive multiple devices simultaneously and achieve multi-channel control.
Status feedback: The module is equipped with indicator lights to display the working status of each channel for easy monitoring.
Safety protection: It has overload and short circuit protection functions to ensure the safety of modules and loads.
Технические характеристики
Industrial grade relay components, resistant to high-frequency switching and industrial environmental interference.
Модульная конструкция, легко установить, разобрать, и поддерживать.
Supports continuous operation and frequent switching operations, с высокой надежностью.
Seamless compatibility with Mark series CPUs and I/O systems.
Can be used for redundant configuration to improve overall system stability.
Сценарии применения
Digital actuator control in engine or gas turbine control systems.
Pump valve drive, alarm and indicator light control in industrial automation.
Expansion of digital output interfaces for distributed control systems.
Action execution and fault linkage in industrial safety systems.

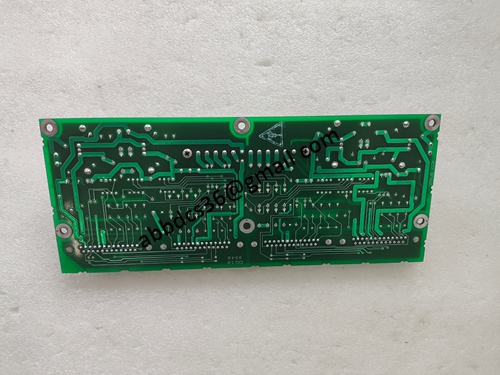

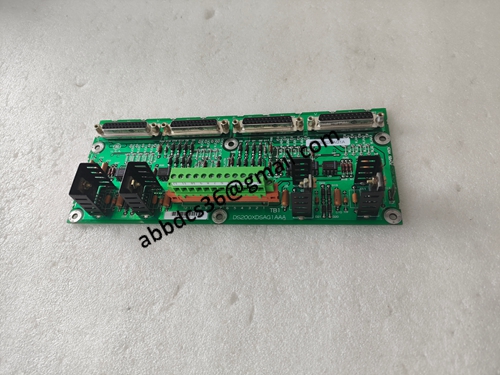

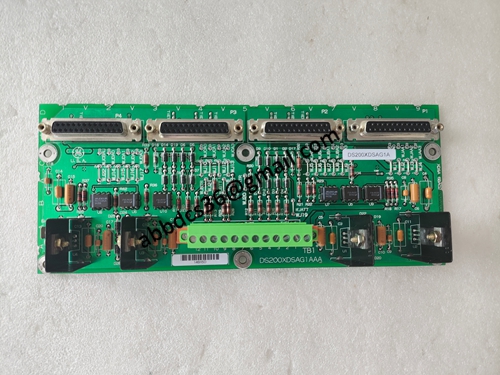

Подробные фотографии продукта：
