DSAB-01C measuring board
Руководство по продукту：
DSAB-01C measuring board
1、 Обзор продукта
DSAB-01C is a measurement/auxiliary circuit board in ABB industrial drive systems, commonly used in frequency converters or drive units. It is mainly used for the acquisition and detection of voltage, текущий, and other signals, and cooperates with the system to complete rectification, protection, and feedback control functions. It plays a role in signal measurement and auxiliary control in industrial automation and drive control systems.
2、 Main functional features
Used for measuring and detecting DC or AC signals, achieving key parameter acquisition such as voltage and current
Cooperate with the drive system to complete signal feedback control and improve system stability during operation
Equipped with rectification and auxiliary circuit functions, supporting the normal operation of power modules
Provide basic protection function, which can be used for monitoring overcurrent, overvoltage and other working conditions
Stable signal processing, suitable for industrial frequency conversion and drive control environments
Модульная конструкция для легкой установки, replacement, и обслуживание
Сильная способность защиты от помех, suitable for complex electromagnetic industrial sites
Компактная структура, suitable for integration within the drive system for use
Supports long-term continuous operation with high reliability
Good compatibility with ABB drive system, mature and stable application
окончание
This measuring board is mainly responsible for signal acquisition and auxiliary control functions in industrial drive systems, and is an important component to ensure stable system operation and achieve precise control.

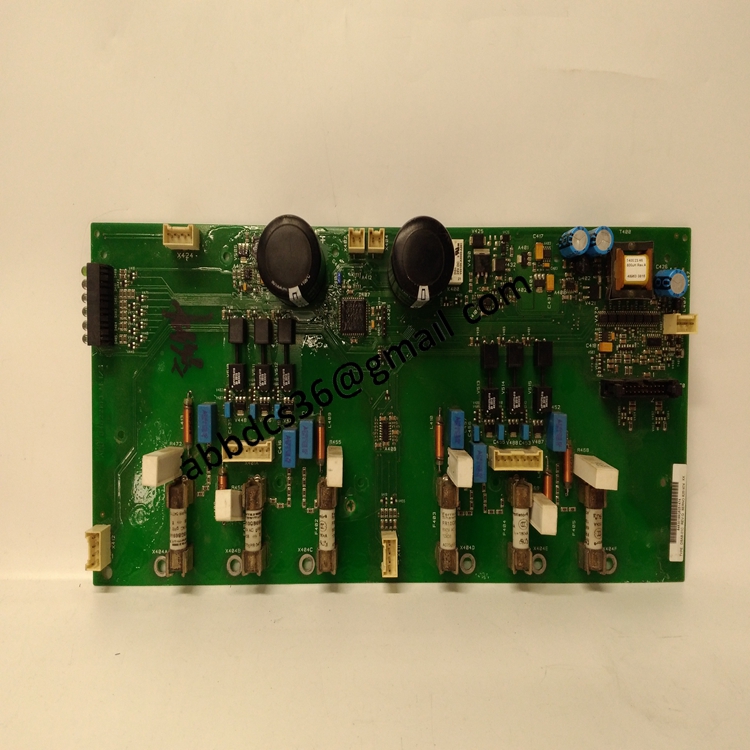

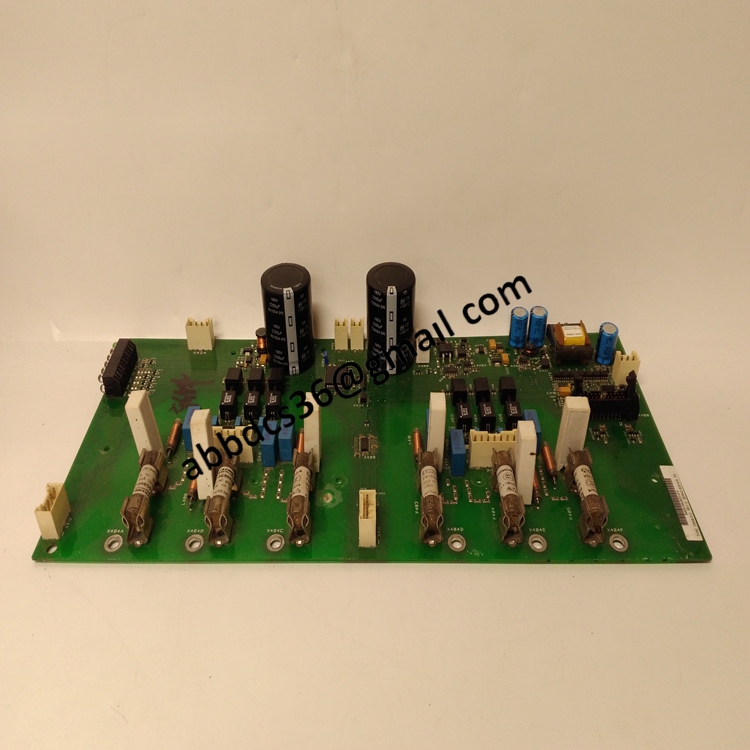

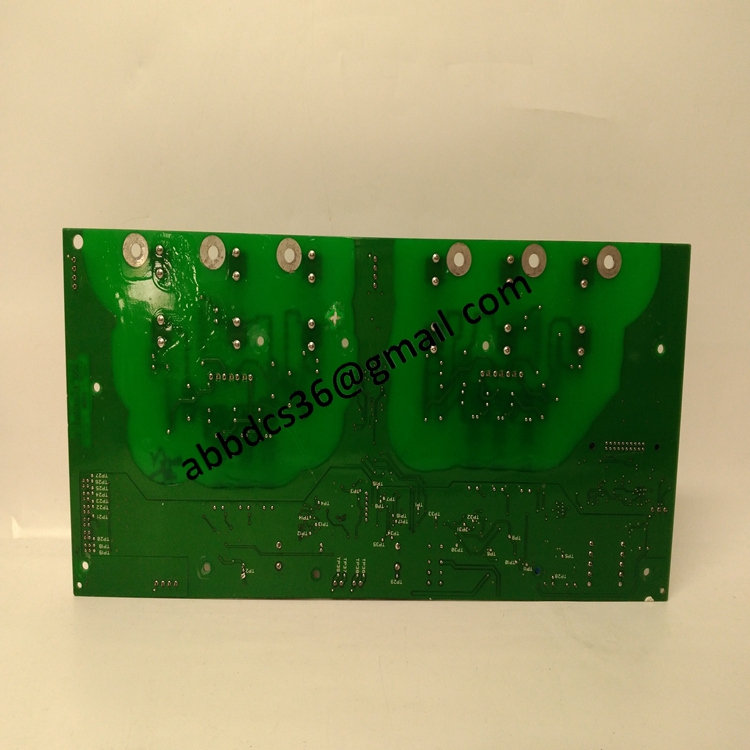

Подробные фотографии продукта：
DSAB-01С
