IC698CPE030 Ethernet Communication Module

Руководство по продукту：

Analysis of IC698CPE030 Ethernet Communication Control Module

я. Обзор

IC698CPE030 is a high-performance CPU controller in the GE PACSystems RX7i series, which integrates Ethernet communication functionality. This module not only undertakes control tasks, but also has strong industrial network communication capabilities, suitable for medium and large-scale automation systems, and is the core processing unit in control systems.

2、 Ethernet communication function

IC698CPE030 has a built-in dual Ethernet interface, which enables high-speed data exchange and system integration between multiple devices.

Supports dual RJ45 Ethernet ports, 10/100Mbps adaptive
Supports industrial protocols such as TCP/IP, Modbus TCP, EtherNet/IP, и т. д.
Support EGD (Ethernet Global Data) high-speed data exchange
Can achieve communication between PLC and upper computer, HMI and other control systems
Support remote programming, monitoring, and diagnostic functions
Built in web server, supporting device status for accessing web pages
Support FTP file transfer function
Support network redundancy and data exchange optimization
Suitable for industrial Ethernet distributed control systems
Can be connected to SCADA, MES and other management systems
3、 Основные возможности модуля

IC698CPE030 combines control and communication functions, providing high performance and reliability.

Built in high-performance CPU with fast processing speed
Integrate control and communication functions to reduce the number of system modules
Support multitasking parallel processing
Support large capacity programs and data storage
Has good scalability and supports multiple I/O modules
Support serial communication (RS-232/RS-485)
Промышленный дизайн, strong anti-interference ability
Support online maintenance and system upgrades
Suitable for controlling complex automation systems
Improve the overall operational efficiency and stability of the system
4、 Заключение

IC698CPE030 is not only an Ethernet communication module, but also a core controller that integrates control, communication, and data processing. In modern industrial automation systems, it can achieve equipment interconnection and efficient control, and is an important basic equipment for building industrial networked systems.

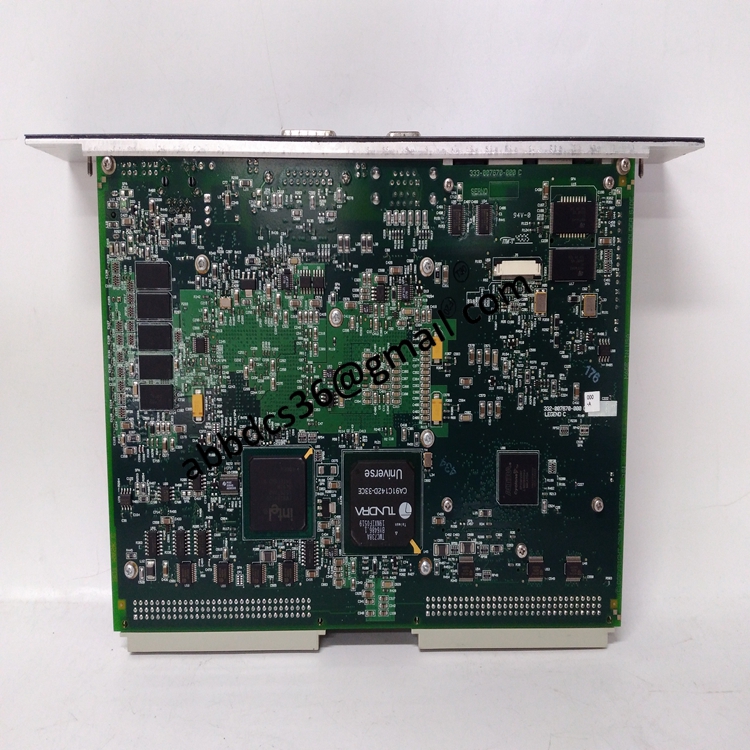

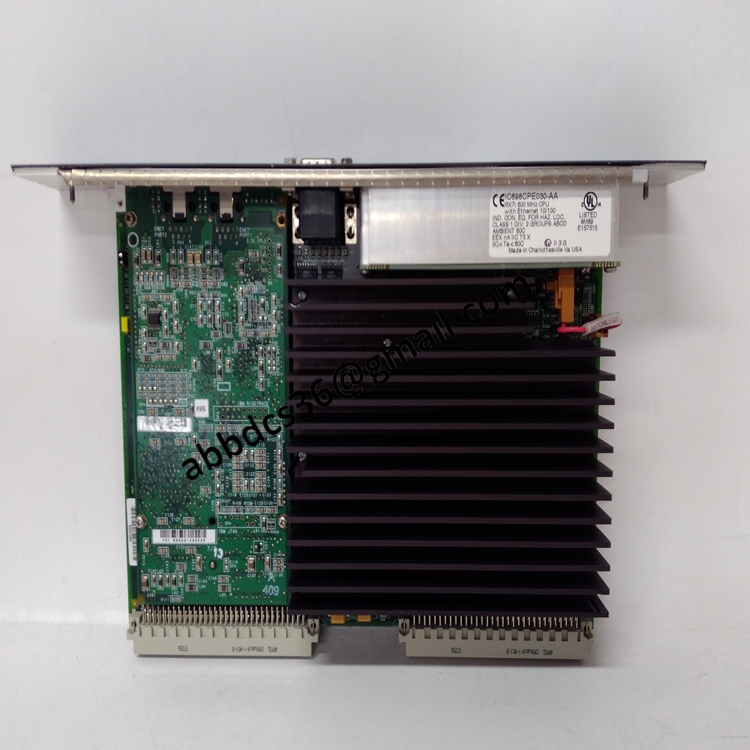

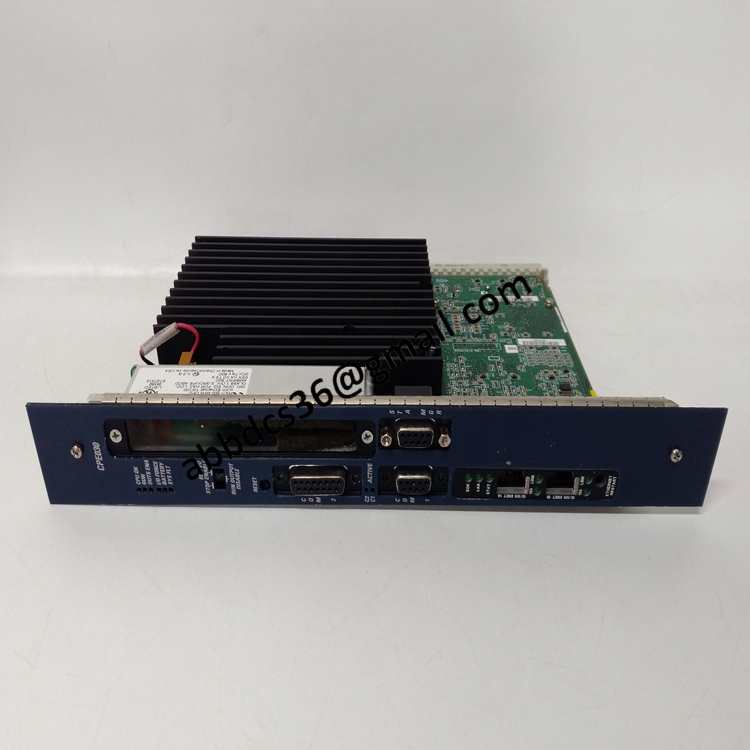

Подробные фотографии продукта：

IC698CPE030
