Датчик давления IDP10-AF1C01F

Руководство по продукту：

IDP10-AF1C01F differential pressure transmitter (Foxboro I/A series, Schneider owned, discontinued and irreplaceable)
Two wire d/p Cell differential pressure transmitter, outputting 4-20mA analog signal, supporting HART digital communication.
Controlled by microprocessor, with an accuracy of ± 0.075% range, equipped with temperature compensation and linear/square root output configuration.
Measurement range: A range, -7.5~+7.5kPa (-30~+30inH ₂ O), wide range ratio.
Standard 316L stainless steel sensor/process connector, available in corrosion-resistant materials such as Hastelloy and Monel.
Aluminum/316 stainless steel casing, NEMA 4X, IP66 protection, suitable for outdoor and corrosive environments.
Built in LCD display and local buttons, capable of on-site zero adjustment, range adjustment, damping, positive and negative effects, and fault safety configuration.

Double sealed certification, compliant with ANSI/ISA12.27.01, ATEX explosion-proof, подходит для опасных зон.
Источник питания 24 В постоянного тока, two-wire system, adjustable damping (typical 0.75s), защита от электромагнитных помех.
Rotating header, dual inlet, supports tube/surface/integrated installation, flexible wiring.
Working temperature -29~+82 ℃, static pressure 25MPa, pressure resistance 100MPa, long-term stability.
Modular electronic unit, capable of upgrading digital protocols such as FoxCom, FF, PROFIBUS, и т. д..
Applied to flow/liquid level/differential pressure monitoring in chemical, нефть и газ, власть, and water treatment industries.
Discontinued production, mainly in the spare parts market, with no substitute models from the original factory.
IDP10-AF1C01F is a high-precision and highly reliable two-wire differential pressure transmitter, suitable for key measurement scenarios in industrial process control.

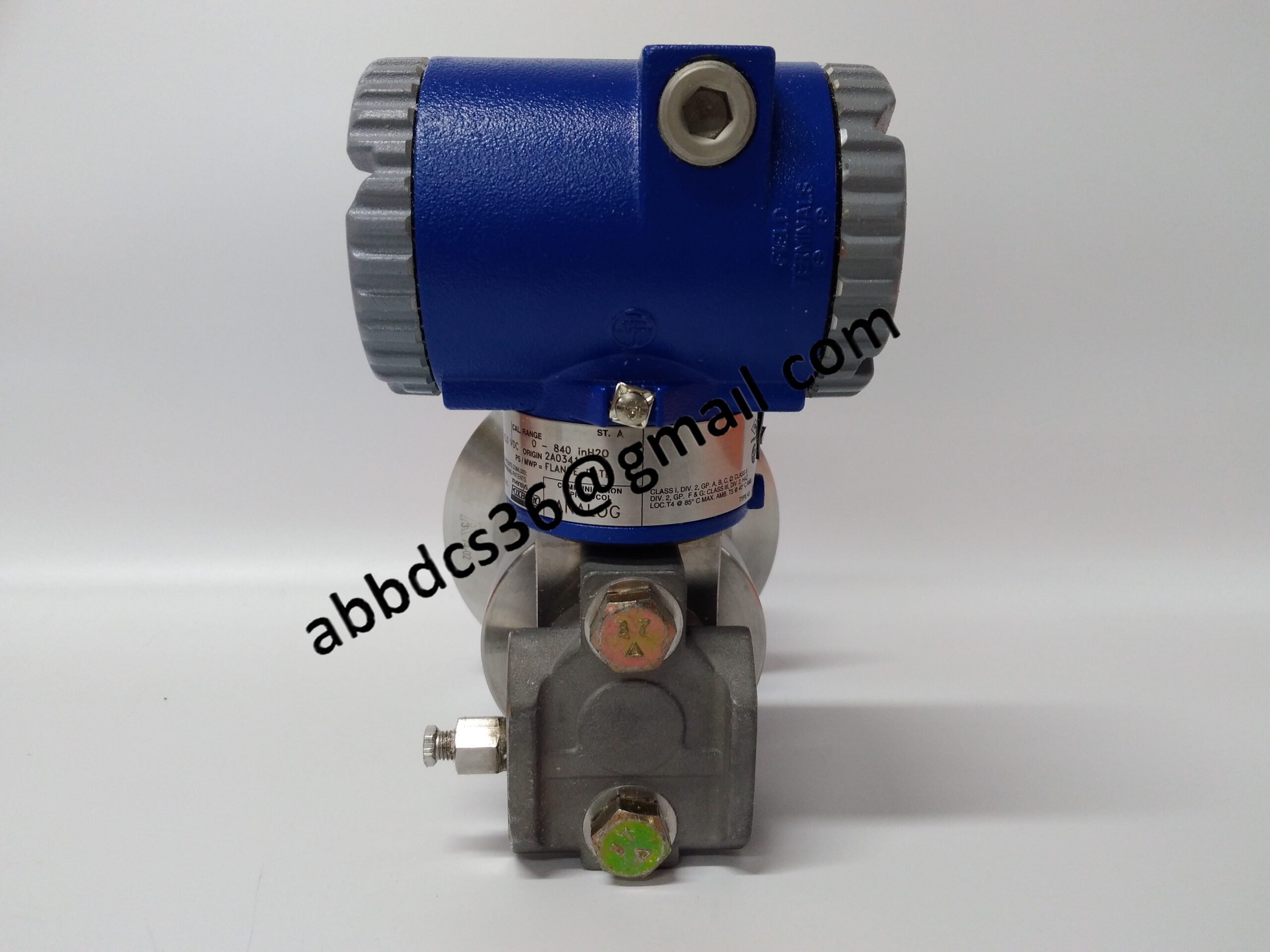

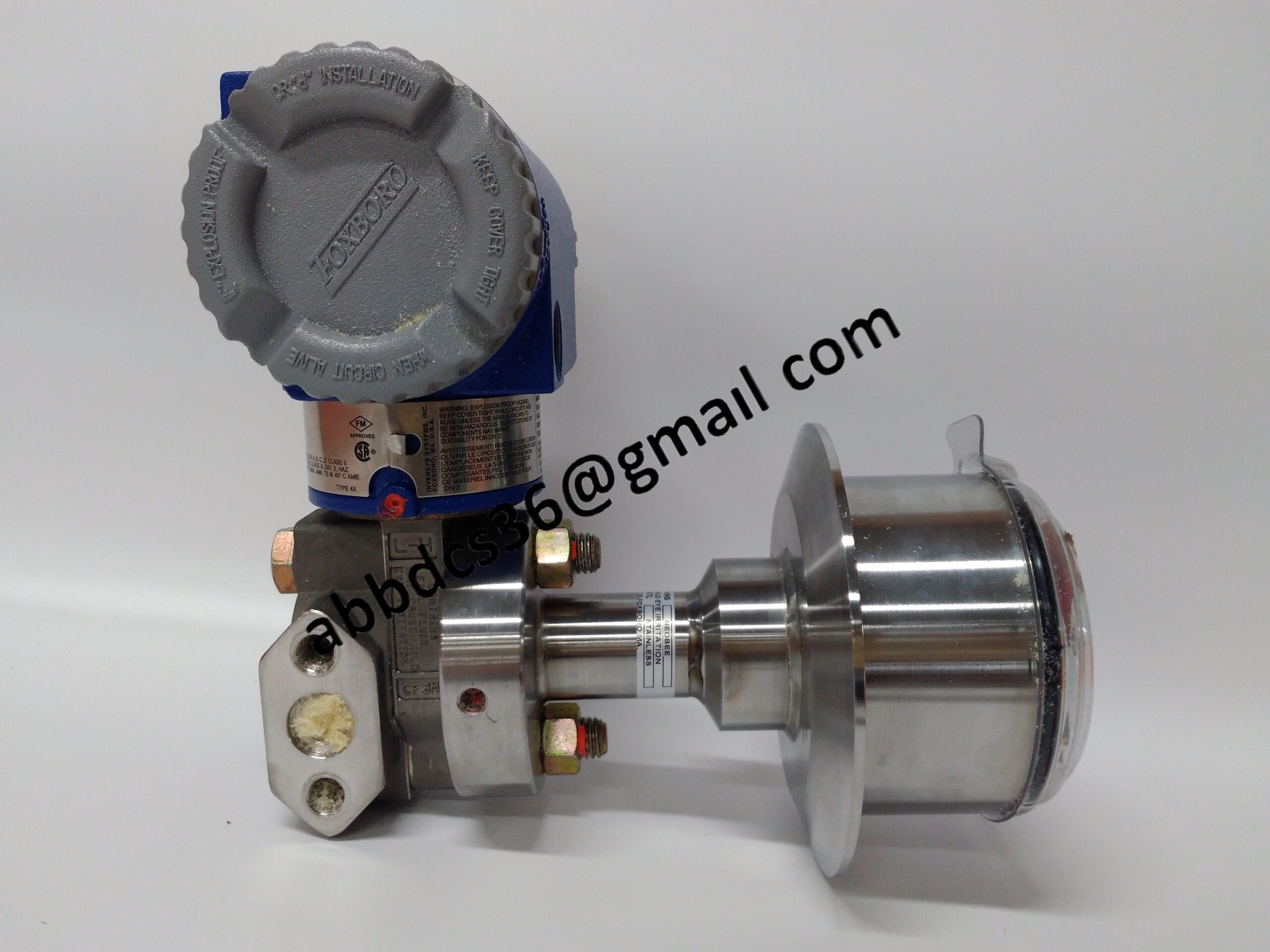

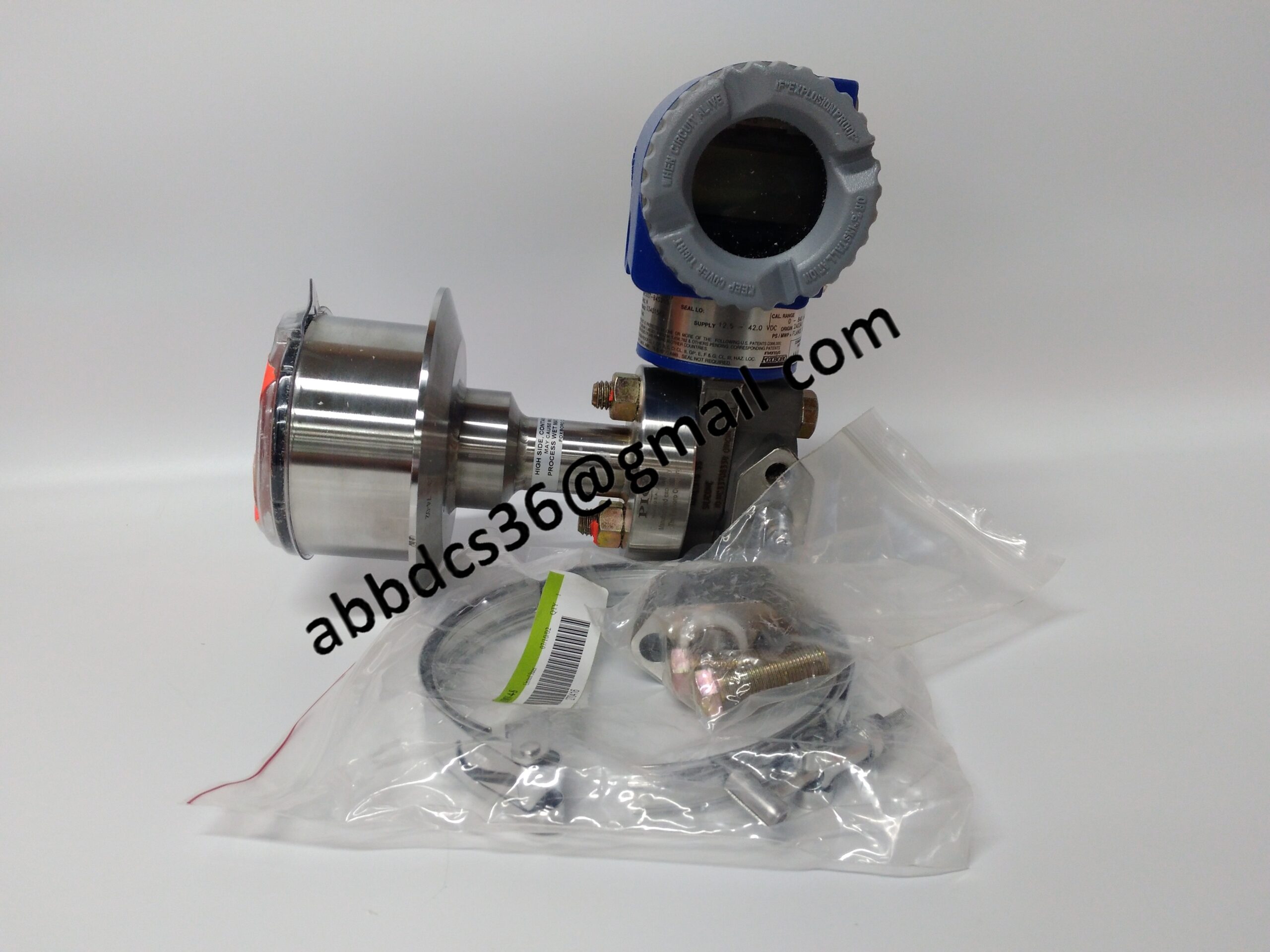

Подробные фотографии продукта：

IDP10-AF1C01F
