IOR810 P-HB-IOR-80010000 Bus Adapter Module
Руководство по продукту：
IOR810 P-HB-IOR-80010000 is the S800 I/O gateway module of ABB Symphony Plus system, used to connect the controller and S800 I/O subsystem, supporting redundancy and SOE functions.
Core positioning: Communication gateway for Symphony Plus SD/HR series controllers and S800 I/O, model P-HB-IOR-80010000
Bus interface: HN800 I/O bus (electrical/optical) to S800 Modulus (optical only), achieving protocol bridging
Scalability: Up to 7 S800 cluster modems can be connected, with each cluster supporting 12 S800 I/O modules
Communication distance: Electric HN800 up to 30m; Fiber optic HN800+RFO810 repeater up to 3000m
Fiber optic Modulus: Plastic fiber 15m, HCS fiber 200m, glass fiber+TB825 up to 1000m
Redundant configuration: supports module redundancy and bus redundancy to enhance system availability
Signal type: compatible with AI/AO, DI/DO, pulse RTD/TC、SOE、 Intrinsic safety and redundant I/O
SOE Function: Supports event sequence collection, timestamp accuracy determined by S800 DI module
Power specifications: 21.6-28VDC, typical 220mA, maximum 250mA, supports redundant power supply
Physical parameters: 54mm width x 119mm height, DIN rail installation, net weight 0.431kg
Environmental indicators: working temperature 0-55 ℃, storage temperature -40-85 ℃, 20% -95% RH non condensing
Certification standards: CE, CSA, cCSAus, applicable to Class I Div 2 hazardous areas
Compatible modules: Supports AI801/810, AO801/810, DI801/810, DO801/810, и т. д.
Diagnosis and configuration: Configuration issued by the controller, supporting status monitoring and fault diagnosis
Application scenario: S800 I/O integration for process control in power, металлургия, chemical industry, и т. д.
IOR810 P-HB-IOR-80010000 has become the core gateway for ABB Symphony Plus system to access S800 I/O with high reliability, strong scalability, and flexible communication.
Подробные фотографии продукта：

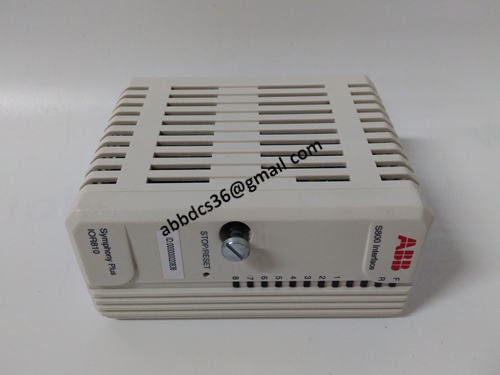

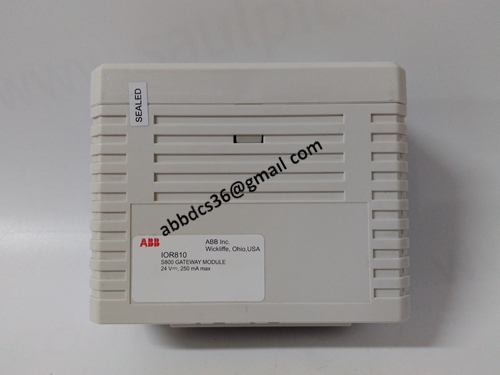

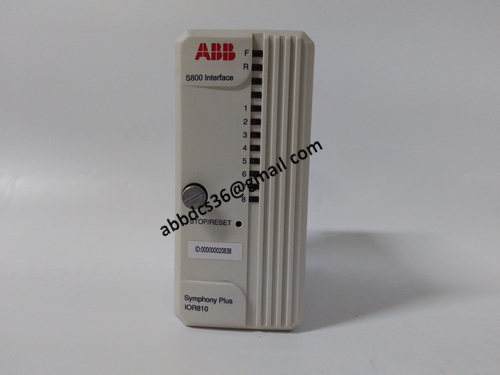

IOR810 P-HB-IOR-80010000
