JEOL 01-W3394F-10C Single Board Computer

Руководство по продукту：

JEOL 01-W3394F-10C Single Board Computer
1. Specially developed for embedded control of JEOL series electron microscopy equipment
2. Onboard integrated computing and storage unit, integrated single board layout
3. Выбор компонентов промышленного класса, supporting long-term uninterrupted operation of equipment
4. Accurate hardware timing ensures real-time processing of scanned imaging data
5. Multiple standard communication interfaces, compatible with various signal acquisition boards
6. Equipped with hardware watchdog function to reduce the risk of system crashes
7. Excellent anti electromagnetic interference performance, suitable for high-voltage working environment of electron microscopy
8. Компактный размер платы, matching the predetermined installation slot inside the equipment

9. Built in stable power management circuit to suppress voltage fluctuations
10. Factory fixed driver program with strong software and hardware compatibility
11. Seismic structural design to adapt to equipment operating vibration conditions
12. Широкий температурный рабочий диапазон, able to withstand temperature changes inside the chassis
13. High speed data throughput capability to meet the transmission of image data streams
14. Standardized joint definition, easy and convenient disassembly and replacement
15. After the overall aging test, the consistency of spare parts exchange is high
The JEOL 01-W3394F-10C single board computer serves as the core control unit of the electron microscope, coordinating equipment signal acquisition, вычисление, and overall process control.

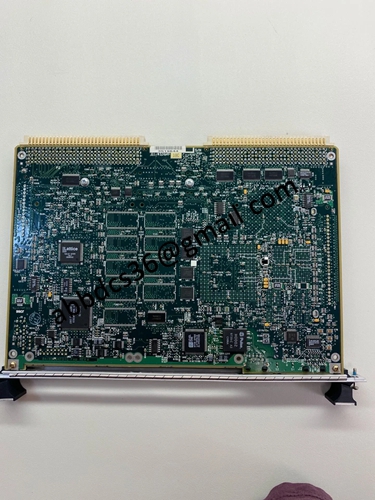

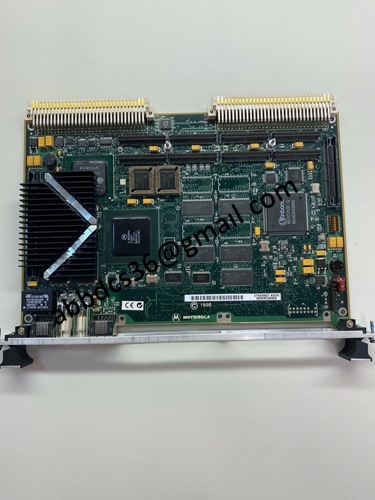

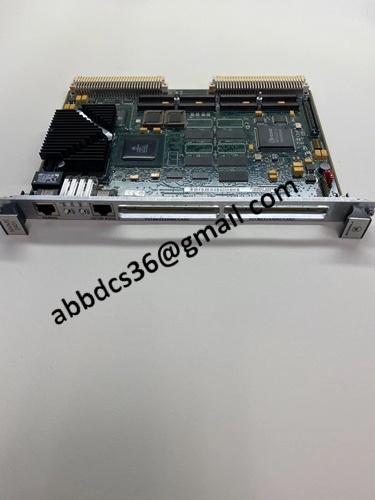

Подробные фотографии продукта：

01-W3394F-10C

видео о продукте
