JEOL AP002129-01 Analog Output Circuit Board
Руководство по продукту：
The JEOL AP002129-01 analog output circuit board is a JSM-6701F field emission scanning electron microscope dedicated signal output board, which outputs controllable analog signals to drive various actuators.
1. Оригинальные аксессуары, compatible with JEOL JSM-6701F scanning electron microscope control system
2. Multiple analog signal output channels, supporting continuous adjustable signal output
3. Good linearity of output signal, stable and reliable control accuracy
4. Built in signal filtering to suppress clutter and reduce signal distortion
5. Isolation circuit design to prevent mutual interference between different circuits
6. Precision wiring technology ensures stable output of weak analog signals
7. Anti static protection design, protecting onboard precision components
8. Electromagnetic shielding structure, suitable for complex electromagnetic environments in laboratories
9. Industrial grade components that support long-term continuous operation of instruments
10. Быстрая скорость ответа, can adjust output in real-time following the main control instructions
11. Equipped with overload detection function, quickly identify abnormal states
12. Integrated overvoltage protection circuit to reduce the risk of board damage
13. The substrate has stable performance and can withstand changes in environmental temperature and humidity
14. Slot standard size, easy to disassemble and replace without modification
15. Regular zoning of the line for easy maintenance and repair in the later stage
The JEOL AP002129-01 analog output circuit board outputs analog control signals, which are used for driving and regulating the power supply of the lens barrel, vacuum components, and sample stage.

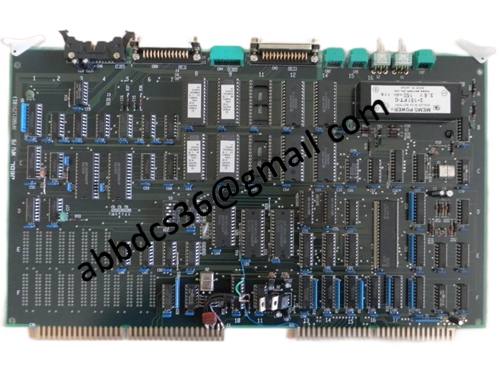

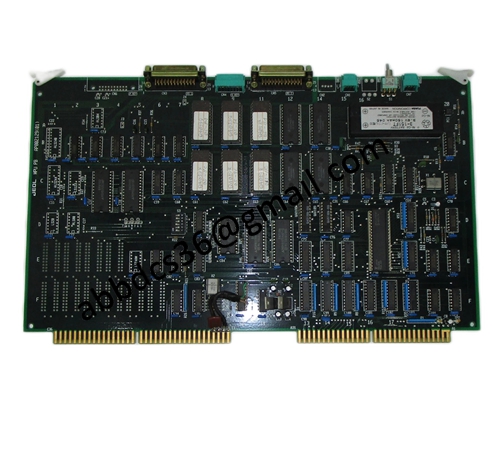

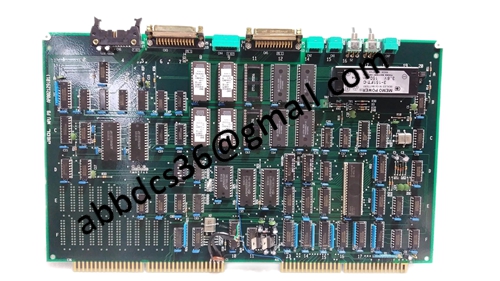

Подробные фотографии продукта：
AP002129-01
