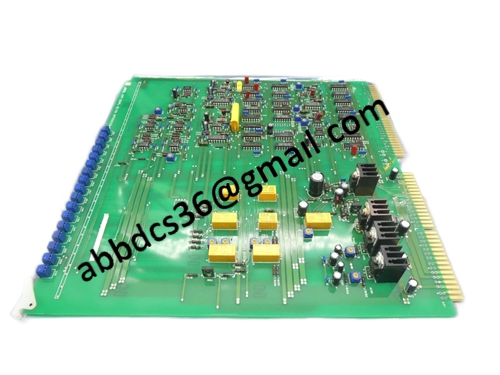

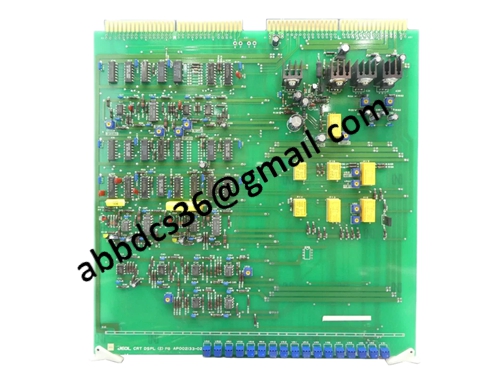

JEOL AP002133-02 Display Board PCB Card
Руководство по продукту：
The JEOL AP002133-02 display board PCB card is a JSM-6701F field emission scanning electron microscope dedicated image signal processing board, responsible for scanning image signal reception, обработка, and image output driving.
1. Original factory matching board, compatible with JEOL JSM-6701F scanning electron microscope machine
2. Process the image signal returned by the detector to ensure imaging clarity
3. Precise circuit layout, reducing signal noise, and minimizing image distortion
4. Built in signal filtering circuit effectively suppresses clutter interference in imaging
5. Accurate impedance control, suitable for high-frequency and weak image signal transmission
6. Optoelectronic isolation design to prevent crosstalk between various signal circuits
7. Slot style standard structure, easy and fast disassembly and replacement operation
8. Anti static protection design, protecting precision chip components
9. Electromagnetic shielding structure, suitable for complex electromagnetic environments in laboratories
10. Industrial grade components that support long-term uninterrupted operation of instruments
11. Fast signal conversion response, real-time output of scanned image screen
12. Integrated overvoltage and overload protection to reduce the risk of board failure and damage
13. The substrate is stable and reliable, and can withstand changes in laboratory temperature and humidity
14. Regular zoning of the line facilitates fault detection, обслуживание, and repair
15. Strict dimensional tolerances, direct replacement without the need for complex parameter tuning
The JEOL AP002133-02 display board PCB card receives secondary and backscattered electronic signals, completes image calculations, and outputs them to the display terminal.
