JEOL AP002275-00 Интерфейсный модуль
Руководство по продукту：
JEOL AP002275-00 interface module is compatible with JSM-6701F scanning electron microscope to achieve hardware unit signal docking and signal conditioning.
1. Оригинальный модуль, compatible with JEOL JSM-6701F field emission scanning electron microscope control system
2. Build signal channels between the main control board and external sensing and execution components
3. Level matching of input and output signals to ensure compatible transmission of signals
4. Изоляция раздела линии, weaken signal crosstalk, and prevent interference with imaging
5. Integrated simple filtering circuit to filter out clutter noise in the transmission path
6. Slot installation method, easy disassembly and replacement process
7. Configure electrostatic protection devices to prevent chip damage from static electricity
8. Конструкция электромагнитного экранирования, suitable for complex electromagnetic working conditions in the laboratory
9. Select durable industrial components to support long-term uninterrupted operation of equipment
10. Bidirectional transmission of control instructions and equipment status feedback signals
11. Can monitor link continuity and quickly identify line connection faults
12. Equipped with overvoltage protection to reduce the risk of hardware damage caused by surges
13. Strong substrate stability, not easily affected by temperature and humidity changes in performance
14. The terminal layout is neat and clear, making it easy to maintain the circuit
15. Factory preset parameters, simple verification is required after replacement
The JEOL AP002275-00 interface module serves as a signal transfer bridge, completing the data exchange between various peripherals of the scanning electron microscope and the main control system.

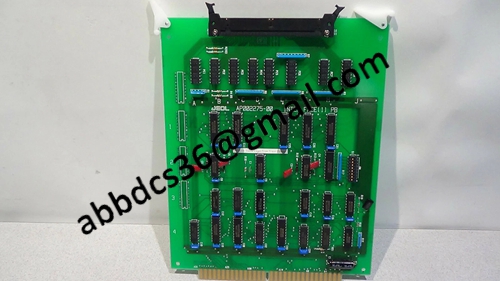

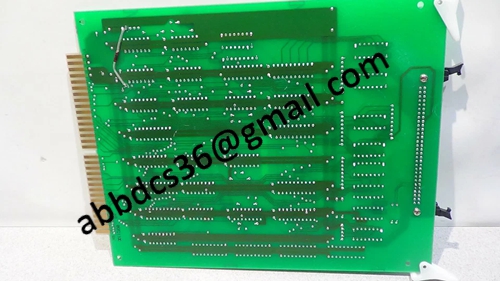

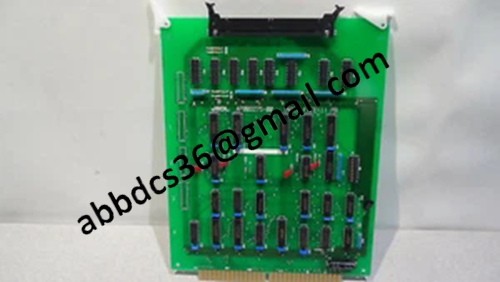

Подробные фотографии продукта：
AP002275-00
